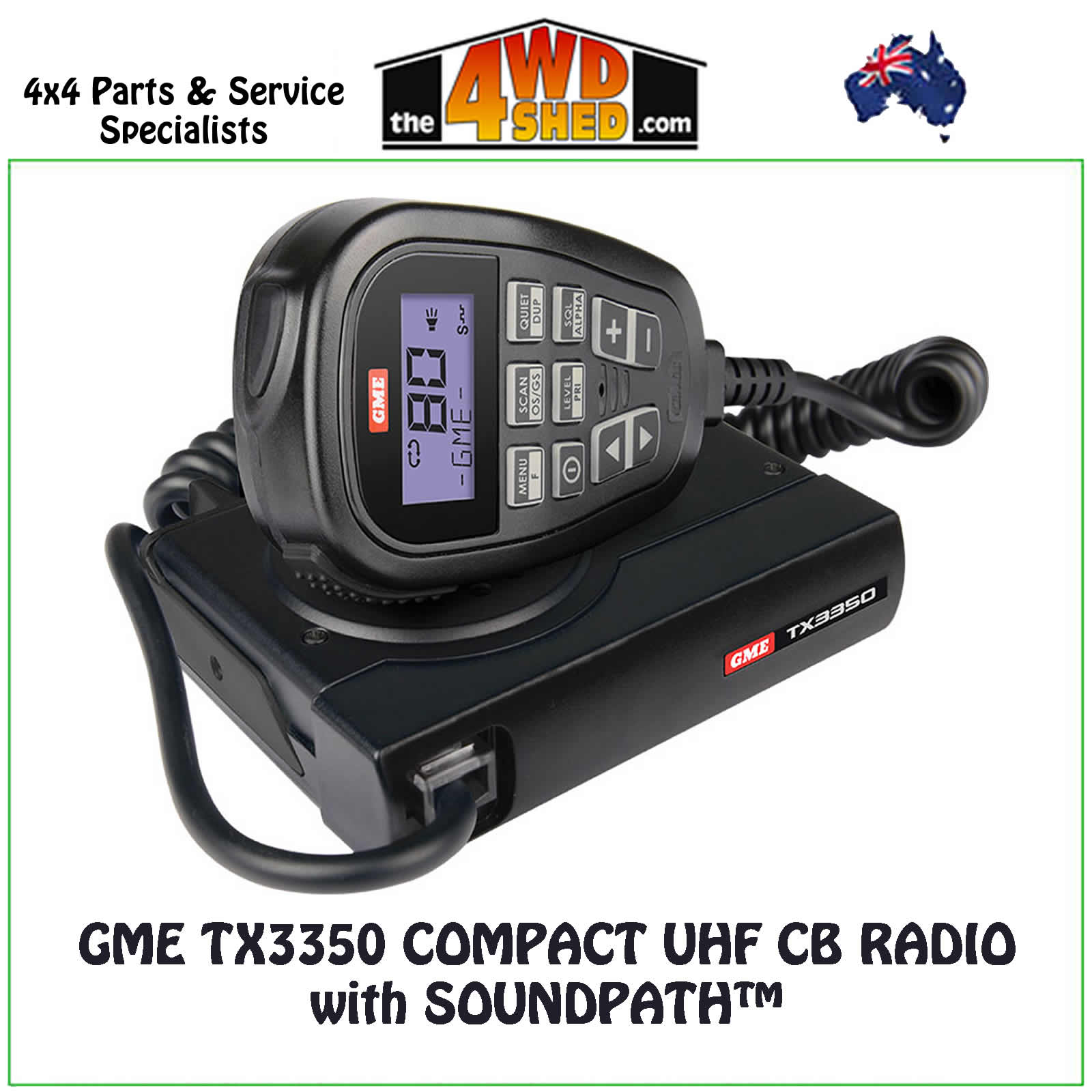

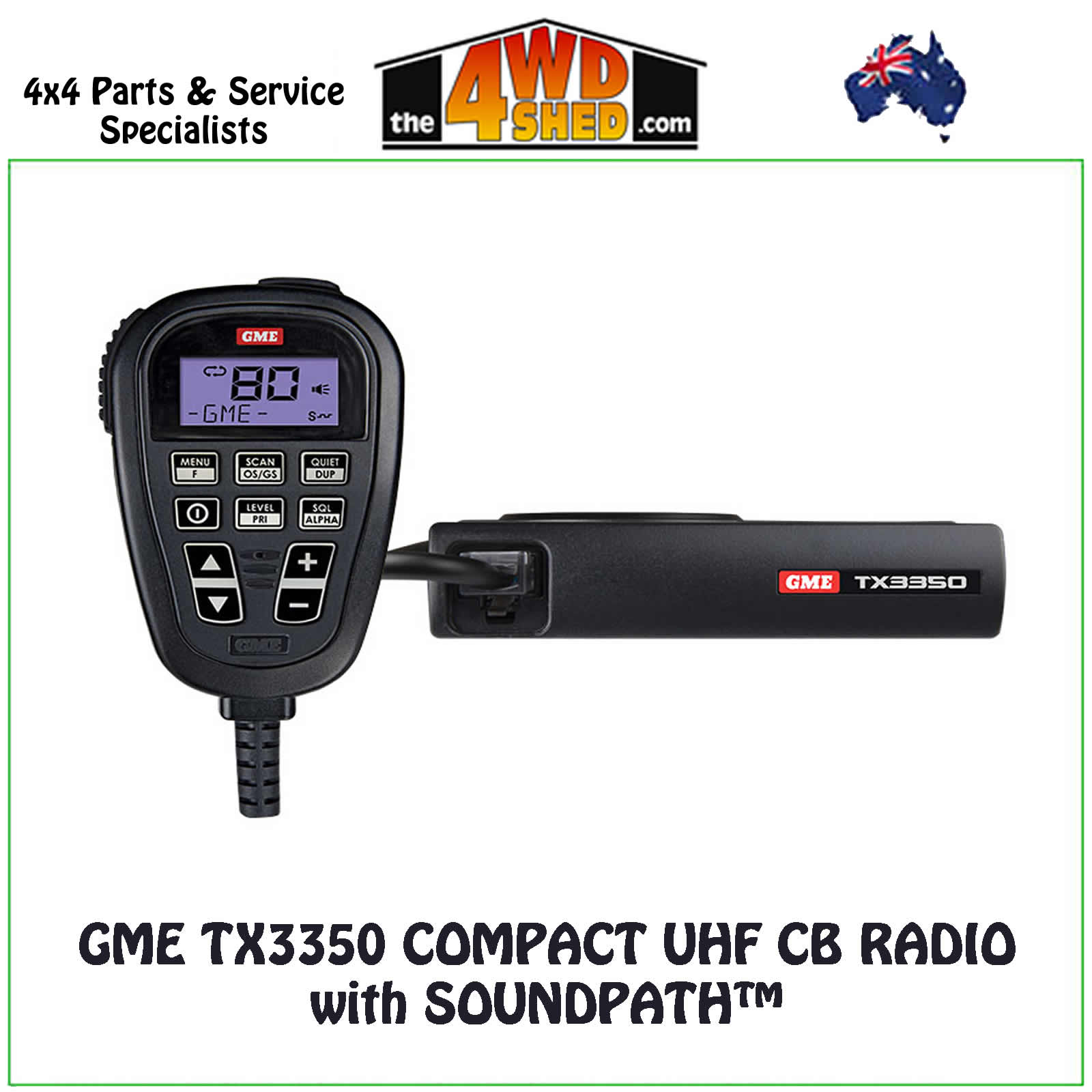

GME TX3350 COMPACT UHF CB RADIO with SOUNDPATH™ - TX3350

Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic

The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.

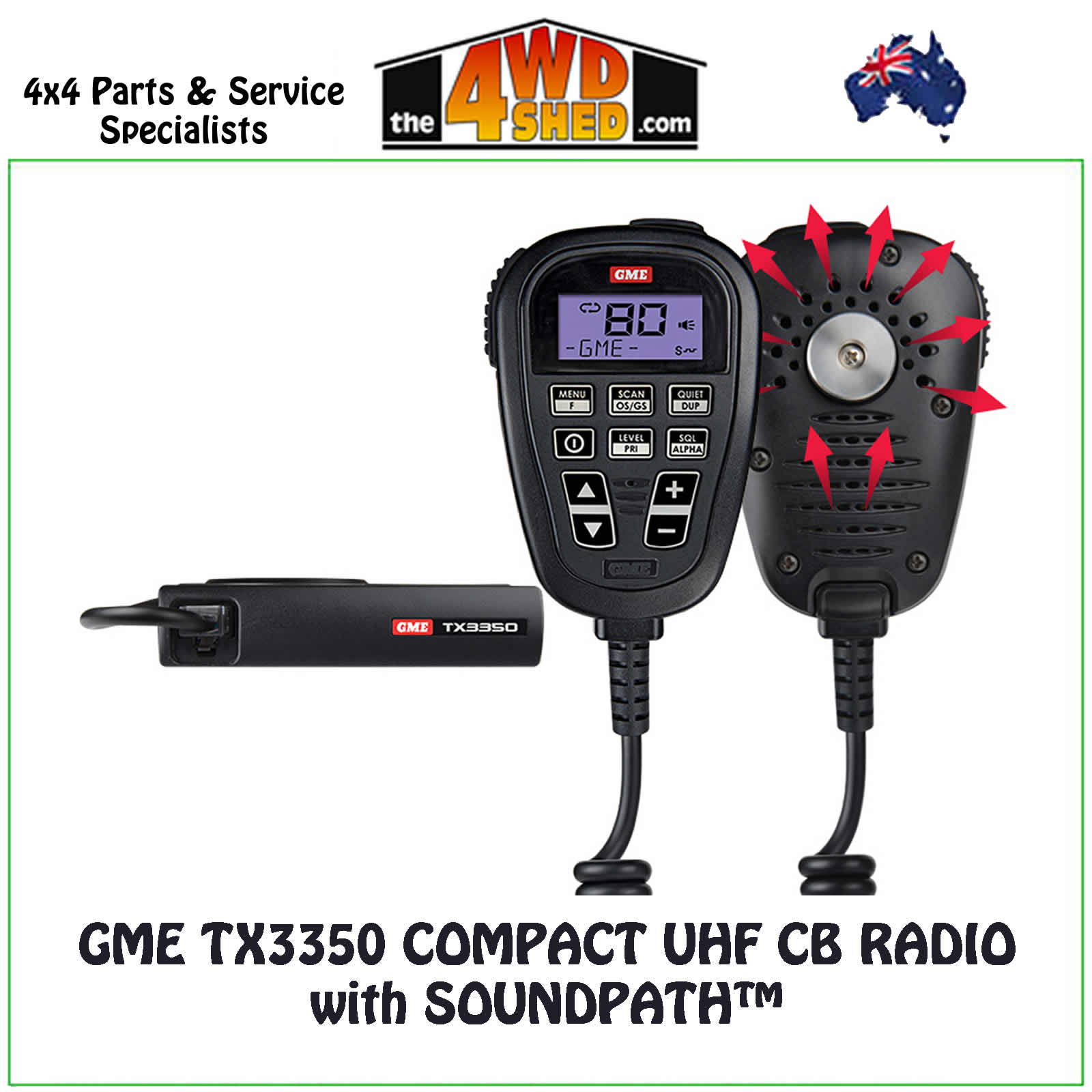

The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.

The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.

Product Details

    Powered by Pure Sound DSP engine
    Full spectrum backlit LCD microphone with Soundpath speaker
    User selectable open and group scan
    User adjustable squelch
    User selectable duplex channels
    User selectable priority channel
    104 in-built DCS codes
    50 in-built CTCSS codes
    5 digit selcall with quiet mode
    Five year warranty
    Australian design and manufacture

In the Box:

    Radio unit
    Mounting cradle
    634B LCD Speaker microphone
    Microphone clip
    DC lead
    Screw pack
    Instruction manual

GENERAL
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX - 476.425 – 477.4125 MHz
Number of Channels - 80 UHF CB
Channel Spacing - 12.5 kHz
Operation Mode - simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
Scanning Speed - 20 channels per second
Antenna Impedance - 50 Ohms nominal
Nominal Battery Voltage - 13.8 volts DC
Operating Voltage Range - 10-15 volts DC
Overvoltage Protection - 25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection - In-line 2A Fuse
Frequency stability - ±2.5 PPM
Modulation - FM

TRANSMITTER
RF Output - 5.0 watts max
Maximum Deviation - < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response - +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption - 1.5 amps with 50 Ohms termination

RECEIVER
Intermediate Frequencies - 1st - 21.54, MHz 2nd - 450 kHz
Sensitivity - - 123 dBm for 12 dB SINAD unweighted
Selectivity - - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity - 73 dB
Blocking Immunity - 100 dB
Spurious Response Immunity - 70 dB
Audio Output Power - 3 watts average into 4 Ohms
Current consumption - < 180 mA muted 600 mA @ max. A.F output
Receive Frequency - ‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission - < - 57 dBm

MECHANICAL SPECIFICATIONS
Dimensions - 102 (W) x 87 (D) x 23 (H) mm
Weight - 158 grams

We stock, supply & fit a large range of GME UHF Radios & Accessories. Fitting is available at our Bayswater, Vic workshop. Additional costs may apply.

ALSO AVAILABLE IN A COMPACT VALUE PACK. CLICK HERE FOR MORE DETAILS.

(TX3350)
