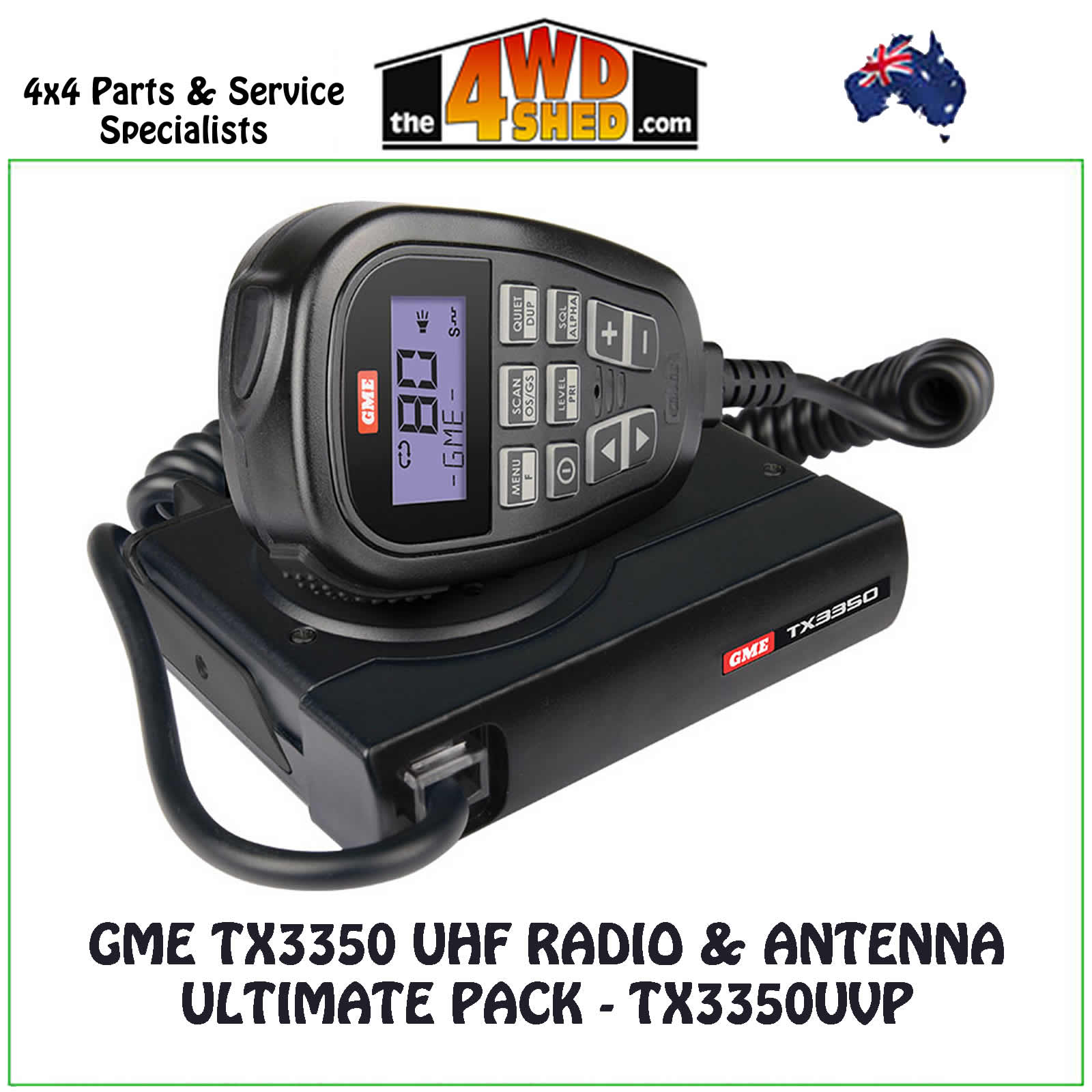

GME TX3350 UHF RADIO & ANTENNA ULTIMATE PACK - TX3350UVP
Super Compact UHF CB Radio with LCD SoundPath™ Speaker mic
The TX3350 is an 80 channel, feature packed super compact UHF CB radio with the new SoundPath™ full function LCD Speaker Microphone.
The challenge was to create a unique solution that allowed a full function LCD Microphone that could house a built in speaker with clear audio all within a compact and ergonomic design. SoundPath™ diverts the audio through a unique convex path around the microphone bollard, whilst maintaining the compact size.
The TX3350 combines the unique combination of space saving benefits of a super compact size radio and full function speaker microphone all in the palm of your hand. The radio can now be discretely installed in almost any location within a vehicle and without the need for extension speakers.
Product Details
Powered by Pure Sound DSP engine
Full spectrum backlit LCD microphone with Soundpath speaker
User selectable open and group scan
User adjustable squelch
User selectable duplex channels
User selectable priority channel
104 in-built DCS codes
50 in-built CTCSS codes
5 digit selcall with quiet mode
Five year warranty
Australian design and manufacture

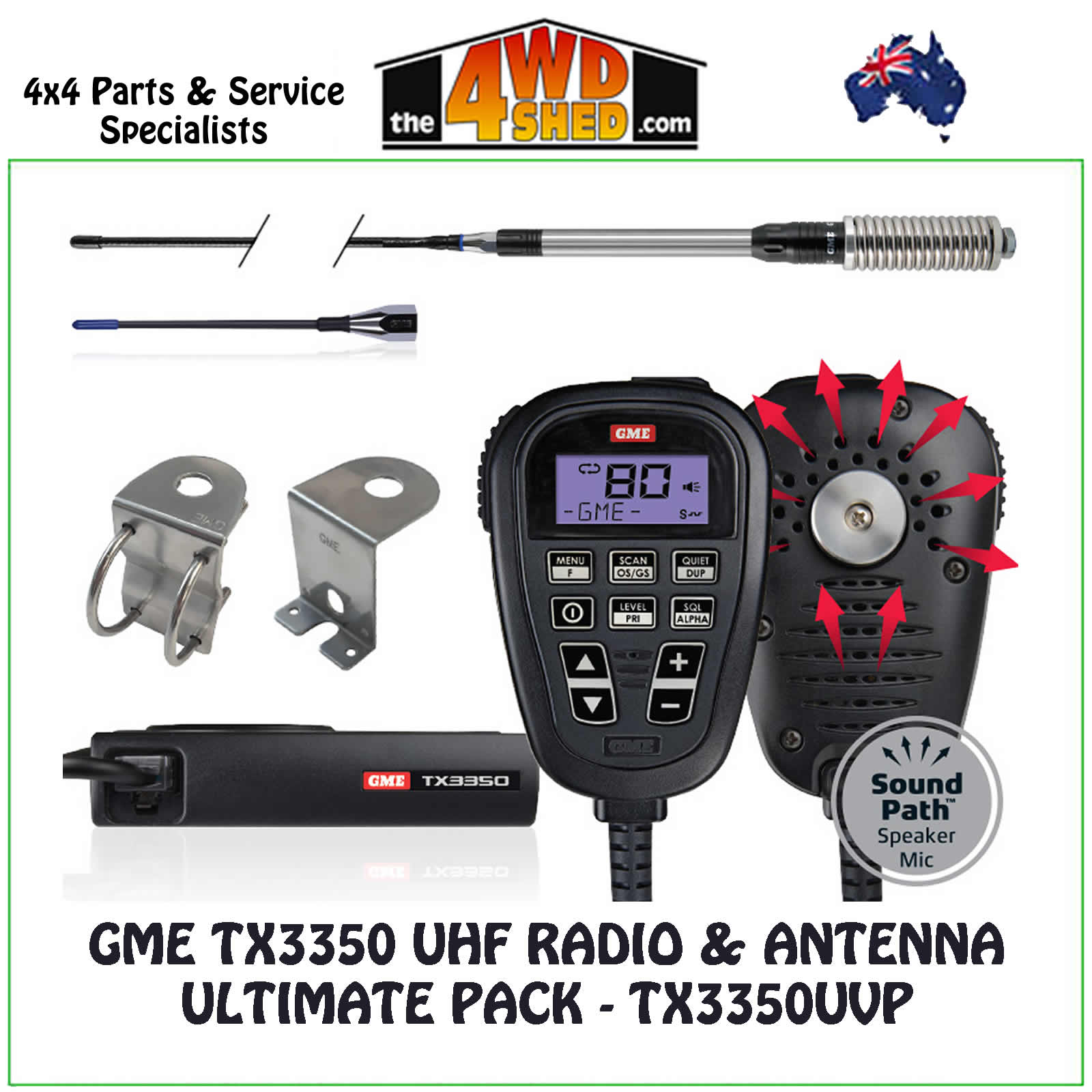

In the Box:
TX3350 Radio Unit
LCD Speaker Microphone
AE4018K3 Rugged Antenna Kit
AE4002 Low Gain Replacement Antenna Whip
MB407SS Universal "Z" Bonnet/Boot Antenna Mount
MB024SS Universal Bull Bar Antenna Mount
Microphone Clip
Screw Pack
DC Lead
Mounting Cradle
Instruction Manual
GENERAL
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX - 476.425 – 477.4125 MHz
Number of Channels - 80 UHF CB
Channel Spacing - 12.5 kHz
Operation Mode - simplex channels 1-80, Semi Duplex channels 1‑8, 41-48
Scanning Speed - 20 channels per second
Antenna Impedance - 50 Ohms nominal
Nominal Battery Voltage - 13.8 volts DC
Operating Voltage Range - 10-15 volts DC
Overvoltage Protection - 25 volts DC max At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Overcurrent Protection - In-line 2A Fuse
Frequency stability - ±2.5 PPM
Modulation - FM
TRANSMITTER
RF Output - 5.0 watts max
Maximum Deviation - < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response - +6 dB per octave, 300 Hz to 3 kHz + 1-3 dB
Current Consumption - 1.5 amps with 50 Ohms termination
RECEIVER
Intermediate Frequencies - 1st - 21.54, MHz 2nd - 450 kHz
Sensitivity - - 123 dBm for 12 dB SINAD unweighted
Selectivity - - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity - 73 dB
Blocking Immunity - 100 dB
Spurious Response Immunity - 70 dB
Audio Output Power - 3 watts average into 4 Ohms
Current consumption - < 180 mA muted 600 mA @ max. A.F output
Receive Frequency - ‑6 dB/Octave de‑emphasis, 300 Hz to 3 kHz + 1-3 dB
Conducted Spurious Emission - < - 57 dBm
MECHANICAL SPECIFICATIONS
Dimensions - 102 (W) x 87 (D) x 23 (H) mm
Weight - 158 grams
