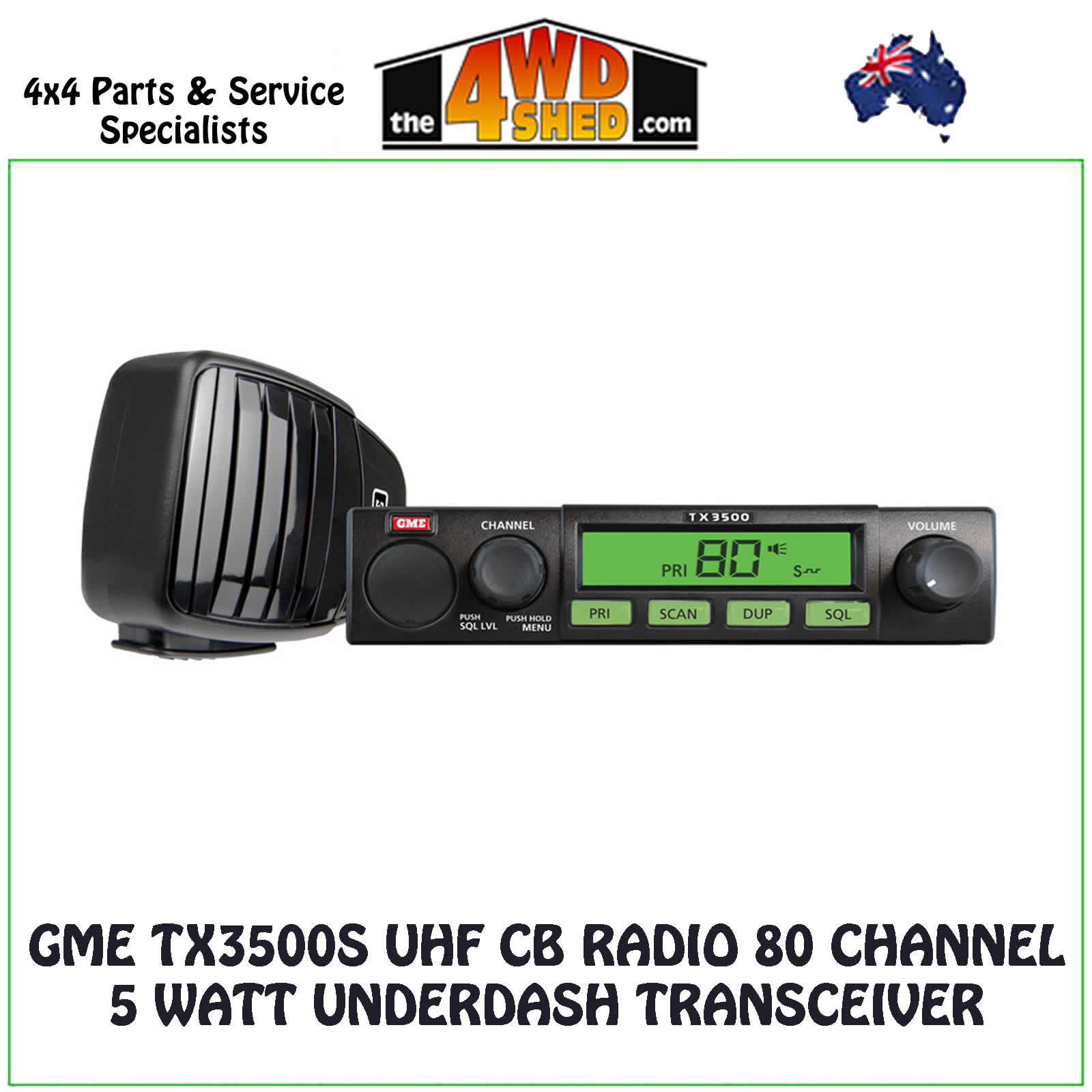

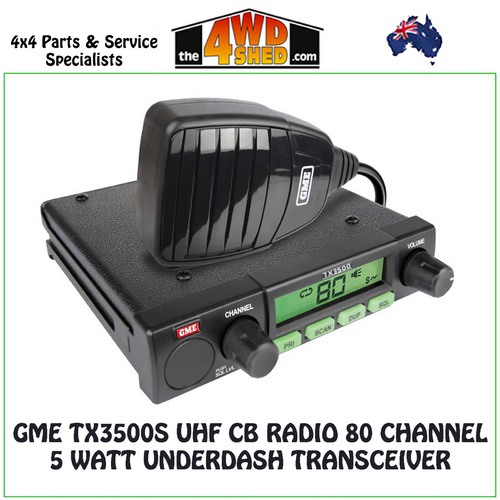

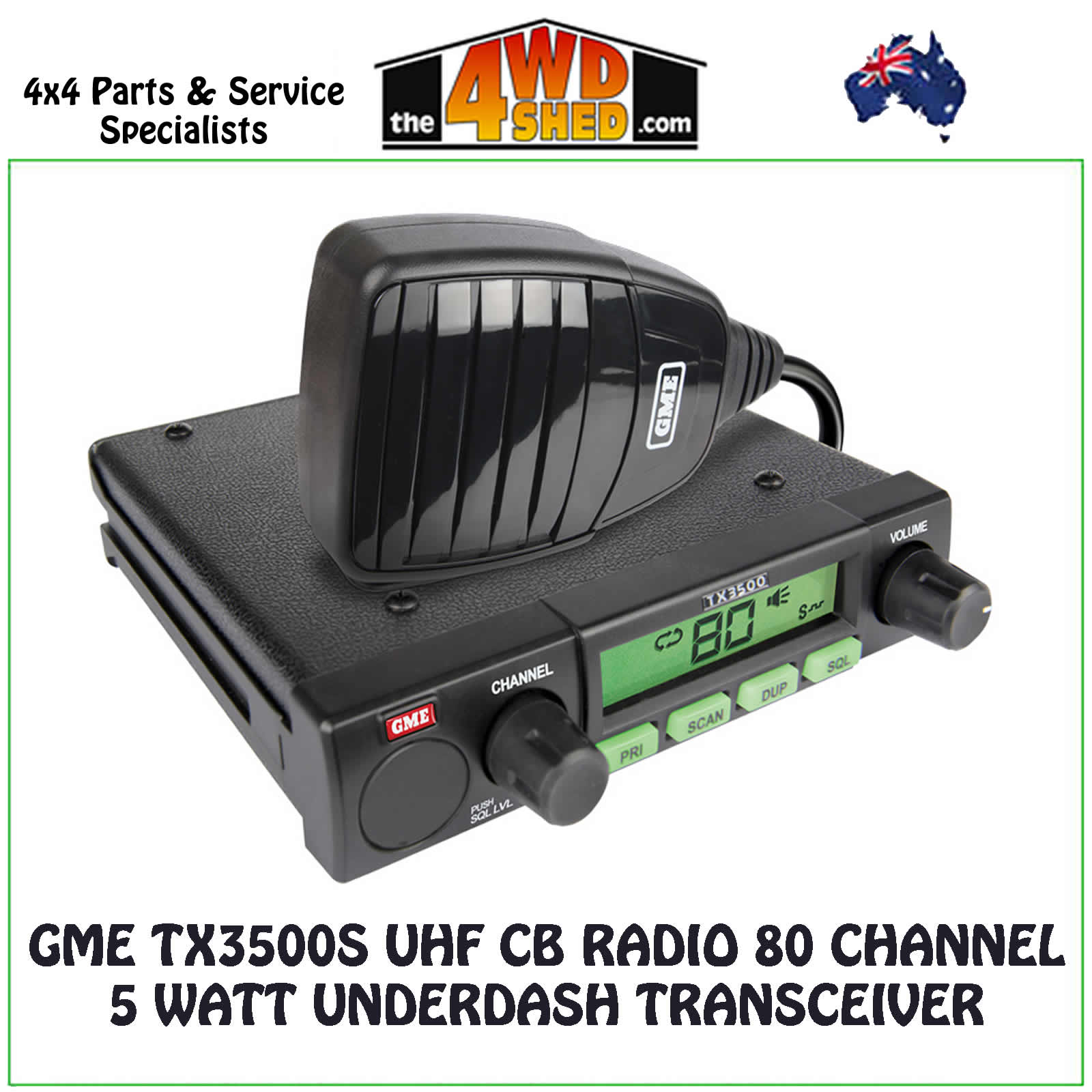

TX3500S Uhf CB Radio 80 Channel 5 Watt Underdash Transceiver

GME TX3500S UHF CB RADIO 80 CHANNEL 5 WATT UNDERDASH TRANSCEIVER - TX3500S

TX3500S DSP Compact UHF radio with ScanSuite radio powered by digital signal processing for Pure Sound

Synonymous with quality and reliability, the GME TX3500S is one of the most advanced 5 Watt UHF CB radios of its kind. Equipped with GME's newest digital scanning technology - ScanSuite™ and an impressive feature list that includes Digital Signal Processing, Advanced Signal Management, Dynamic Volume Control and 19 extra receive channels. With CTCSS and DCS this radio ensures more privacy and less interruption.

The compact size and unique slide-in mounting cradle makes installation simple and our intuitive user interface and controls ensure all of our technology is easy to use and optimises performance across the 80 channels.
Genuine GME 5 year warranty.

Product Details

    ScanSuite
    Advanced signal management
    Digital signal processing
    Dynamic Volume Control
    Wide/narrowband receive filters
    CTCSS & DCS
    Full spectrum backlighting
    Open and group scan mode
    Selectable priority channel
    Active channel transmit in scan
    Graphic signal strength meter
    Adjustable squelch control
    External speaker socket
    Die-cast chassis
    5 year warranty

In the Box:

    Mounting Cradle
    Microphone
    Microphone Clip
    DC Lead
    Screw Pack
    Instruction Manual

Product Specifications

GENERAL
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX - 476.425-477.4125 MHz
Number of Channels - 80
Channel Spacing - 12.5 kHz
Operation Mode - Simplex or half Duplex with repeater talk around.
Scanning Speed - 50 ms per channel (20 channels per second).
Antenna Impedance - 50 Ohms nominal
Nominal Battery Voltage - 12 volts DC
Operating Voltage Range - 10-16 volts DC
Battery Polarity - Negative Earth
Standard Test Voltage - 13.8 volts DC
Overvoltage Protection - 30 volts DC maximum. At 18 volts DC the channel display flashes ‘Hi DC’ for 5 seconds on receive. The RF power is reduced and TX flashes on transmit.
Reverse Voltage Protection - Diode Crowbar
Overcurrent Protection - In-line 2 Amp Fuse
Operating Temperature - -10°C to 60°C

TRANSMITTER
RF Output - 5 watts
Spurious Emission - < - 70 dBc
Frequency Error - < ± 1.5 kHz
Modulation - FM
Maximum Deviation - < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response - +6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise - > 45 dB unweighted
Current Consumption - 1.7 Amps with 50 Ohm termination

RECEIVER
Intermediate Frequencies - 38.85 MHz, 450 kHz
Sensitivity - - 123 dBm for 12 dB SINAD unweighted
Selectivity - - 6 dB at + 3.5 kHz, - 60 dB at ± 12.5 kHz
Intermodulation Immunity - -72 dB
Blocking Immunity - -98 dB
Spurious Response Immunity - 70 dB
Audio Output Power - 3 watts average into 4 Ohms
Audio Signal to Noise - > 45 dB unweighted
Current consumption - < 175 mA muted 750 mA Full volume.
Conducted Spurious Emission - < - 70 dBm

MECHANICAL SPECIFICATIONS
Dimensions - 29 (H) x 128 (L) x 117 (D) mm
Weight - 450 grams
Antenna - SO239 panel socket
External Speaker - 3.5 mm mono jack
Microphone Port - 6 Way telephone style with rubber strain relief

Also available in a value pack with TX3500S UHF Radio & Antenna Click Here to view.
