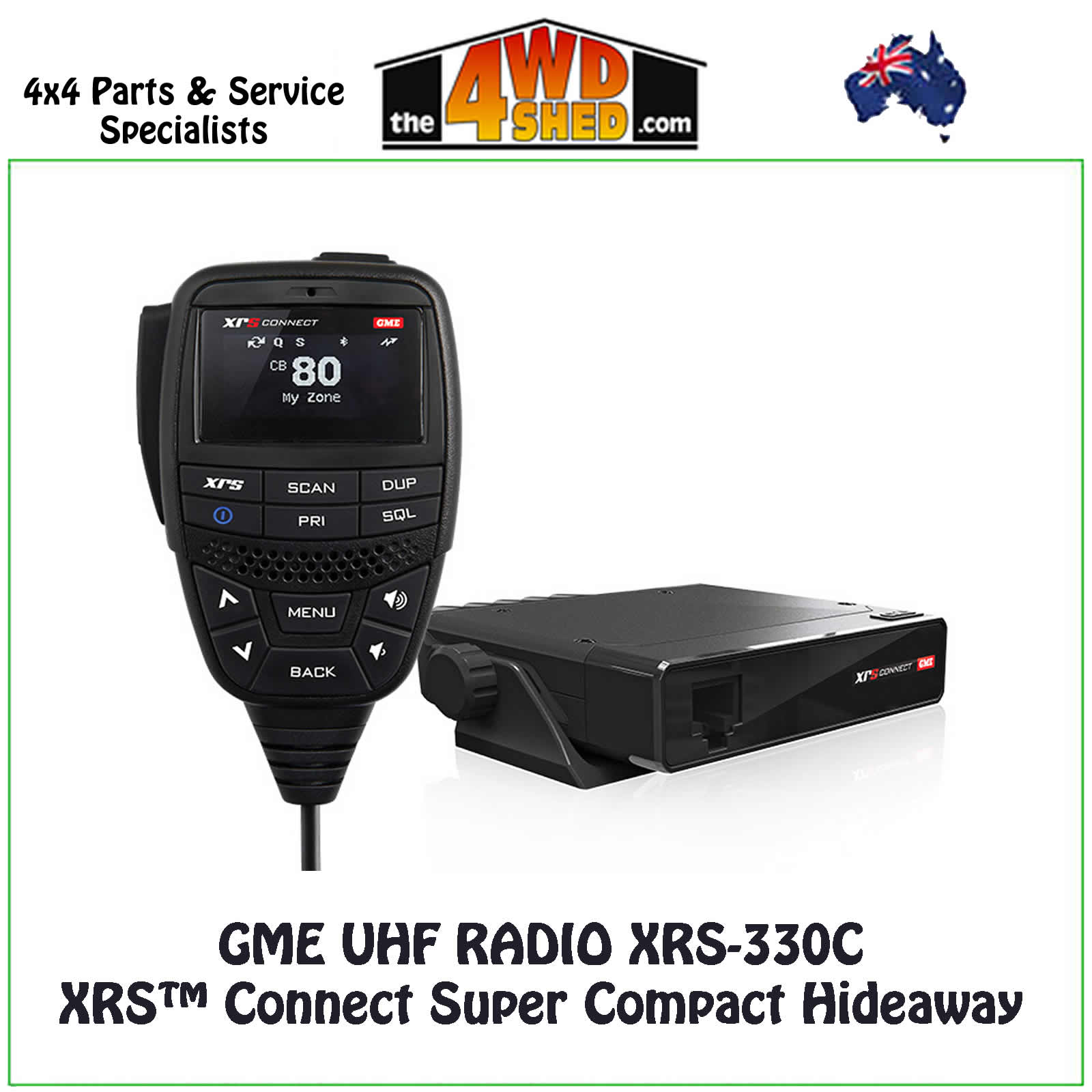

GME XRS-330C XRS™ Connect Super Compact Hideaway

GME XRS-330C XRS™ CCONNECT SUPER COMPACT HIDEAWAY - XRS-330C

Get Connected, Get XRS - Bluetooth enabled

The XRS family is a new Australian Made radio platform designed to be smart, adaptable and rugged.

Enabled by Bluetooth® wireless technology, XRSTM is the first of a new generation of connected UHF radios with unique features never before seen.

It is the first ever UHF CB radio with app control and introduces new features such as creating and sharing scan lists and instant access to the entire Australian and New Zealand registered analogue frequency database.

Much like a smart device, the XRS family are software upgradable via the app, keeping customers up to date with the latest features and technology.

The new XRS Connect professional grade speaker microphone features a powerful 2 watt speaker, customisable buttons and a high contrast OLED screen guaranteeing crystal clear, anti-glare display.

Genuine GME 5 year warranty, plus download and register the new XRS Connect App and receive one year additional warranty.

Bluetooth wireless technology
End user software upgradeable via the app
Download the XRS Connect App on Google Play or the App Store
App compatible with iOS9.0, Android 5.0 and above
Easy to configure and customise radio via the app
Create and share personalised scan lists - up to 400 frequencies
Instant access to over 20,000 receive frequencies
XRS Connect speaker microphone with OLED display
Customisable buttons
25% faster scan speed at 50 channels per second
Memory channel quick select
5 year warranty + 1 additional year for downloading and registering app

In the Box:

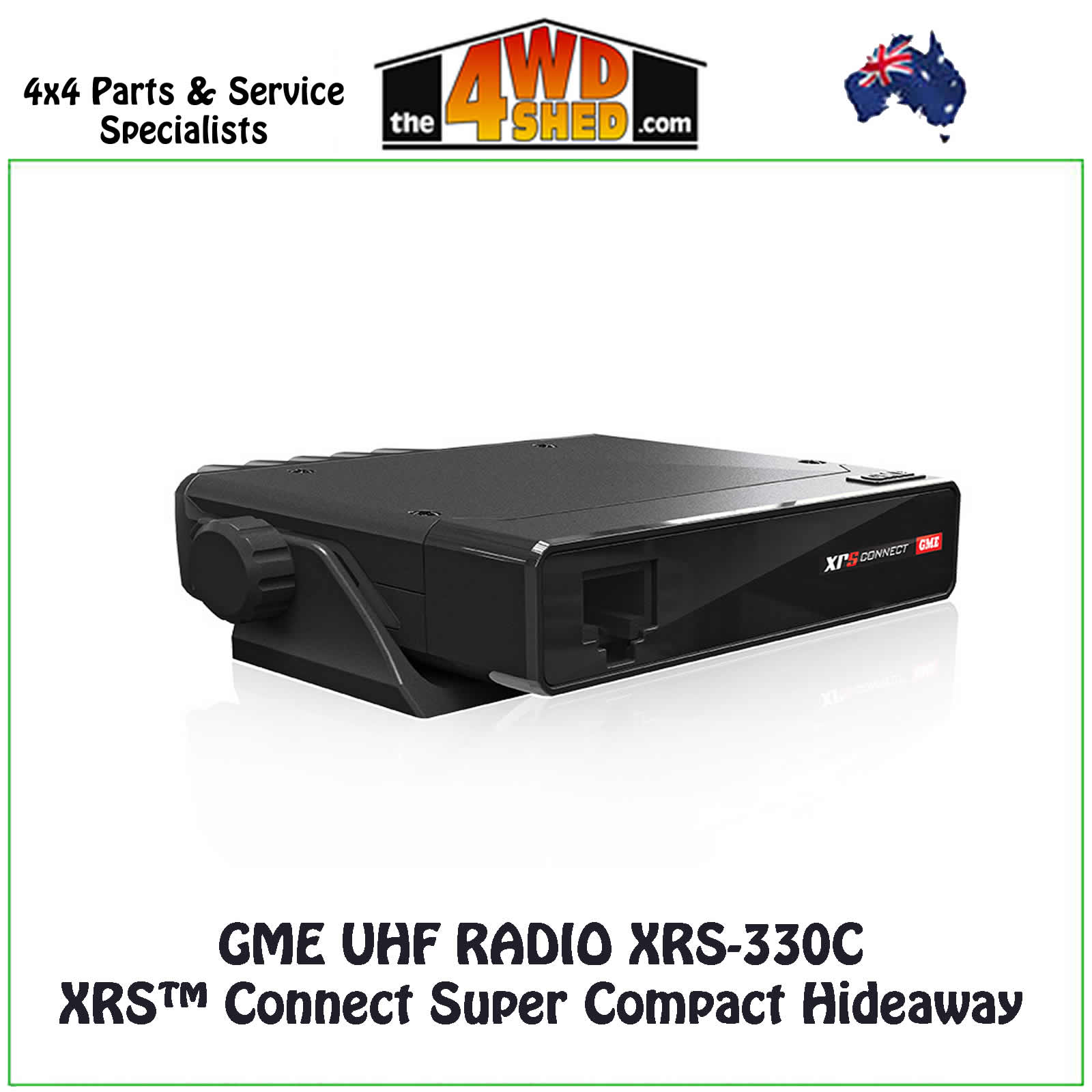

XRS-330C Super Compact UHF CB radio with Bluetooth Smart Connectivity

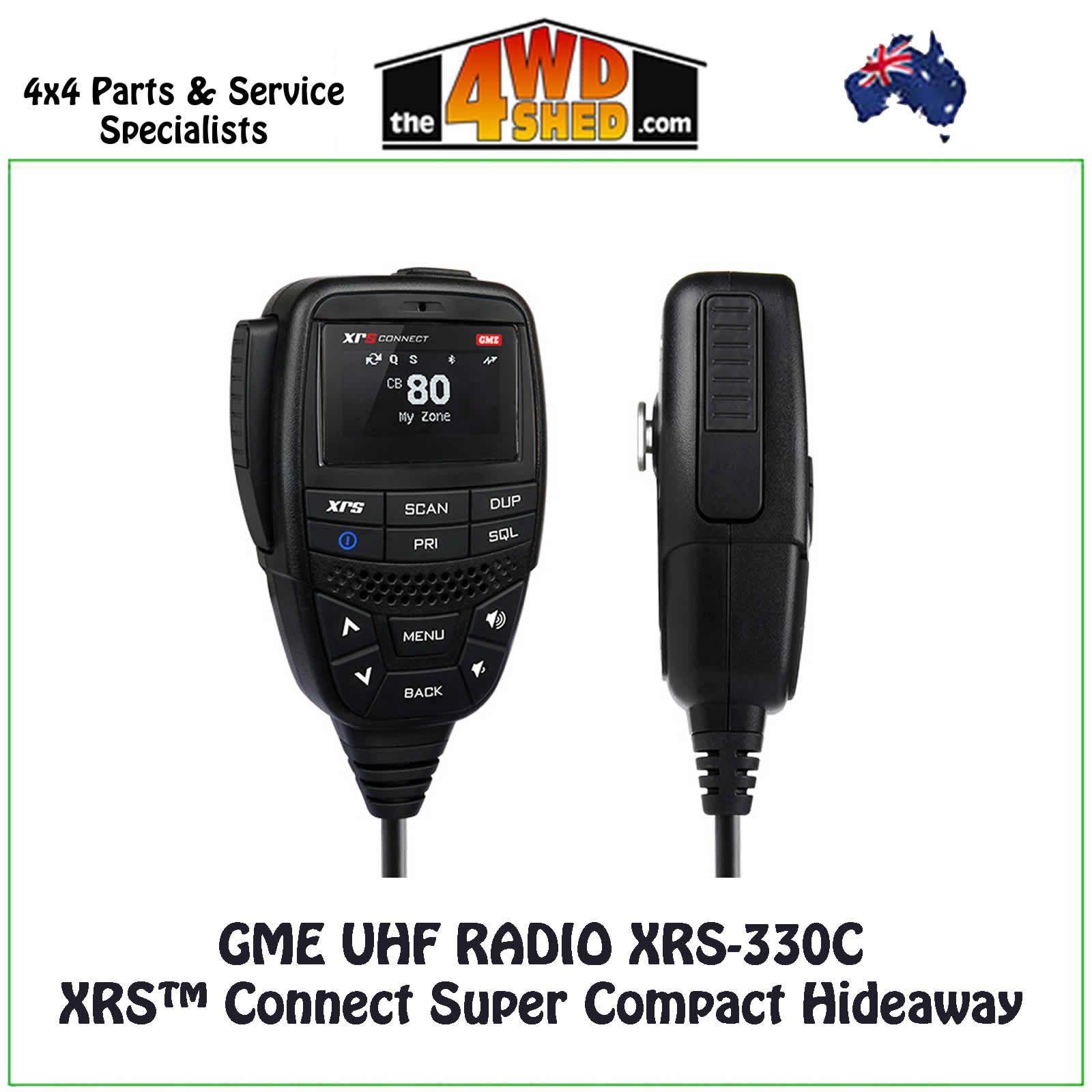

XRS Connect speaker microphone
Microphone clip and radio mounting bracket
DC power Lead
Screw pack
LE040 Mic extension lead
AD008 Mic extension adaptor kit
Quick start guide

Product Specifications
Compliant Specification - Meets AS/NZS 4365 for radio communications equipment in the UHF citizen and personal radio service.
Frequency Range TX - 476.425-477.4125 MHz
Number of Channels - 80
Channel Spacing - 12.5 kHz
Operation Mode - Simplex or half Duplex with repeater talk around.
Scanning Speed - 25 ms per channel (40 channels per second)
Antenna Impedance - 50 Ohms nominal
Nominal Battery Voltage - 12 volts DC
Operating Voltage Range - 10-16 volts DC
Battery Polarity - Negative Earth
Standard Test Voltage - 13.8 volts DC
Overvoltage Protection - 30 volts DC max. At 18 volts DC the RF power is reduced, and the words ‘Hi DC’ flash.
Reverse Voltage Protection - Diode Crowbar
Overcurrent Protection - In-line 2 amp fuse
Operating Temperature - -10°C to 60°C

TRANSMITTER
RF Output - 5 watts
Spurious Emission - < - 70 dBc
Frequency Error - < ± 1.5 kHz
Modulation - FM
Maximum Deviation -  < ± 2.5 kHz at + 20 dB limiting
Transmit Frequency Response - +6 dB per octave 300 Hz to 3 kHz +1-3 dB
Demodulated Audio Signal to Noise - > 45 dB unweighted
Current Consumption - 1.5 amps with 50 Ohms termination

RECEIVER
Intermediate Frequencies - 38.85 MHz, 450 kHz
Sensitivity - - 122 dBm for 12 dB SINAD unweighted
Selectivity - - 6 dB at + 3.5 kHz, ‑ 60 dB at ± 12.5 kHz
Intermodulation Immunity - -72 dB
Blocking Immunity - -98 dB
Spurious Response Immunity - 70 dB
Audio Output Power - 3 watts average into 4 Ohms
Audio Signal to Noise - > 45 dB unweighted
Current consumption - < 175 mA muted 750 mA Full volume
Conducted Spurious Emission - < - 70 dBm

MECHANICAL SPECIFICATIONS
Dimensions - 21 (H) x 100 (L) x 87 (D) mm
Weight - 450 grams
Antenna - SO239 panel socket
External Speaker - 3.5 mm mono jack
Microphone Port - 6 Way telephone style with rubber strain relief

We stock, supply & fit a large range of GME UHF Radios & Accessories. Fitting is available at our Bayswater, Vic workshop. Additional costs may apply.
