HD Hitch Quick Release Awning Bracket Tradesman III Kit - Supa Peg Model
More infoDISCONTINUED PRODUCT LINE DUE TO UPDATES. LIMITED STOCK AT THIS PRICE.
RacksBrax HD Hitch Quick Release Awning Bracket - Tradesman III Kit
* Suits SUPA PEG models
Change over your heavy loads in less than 10 seconds with this pack of three quick release RacksBrax HD Hitches which have been especially adapted to fit the SUPA PEG range of 4WD awnings, including the wing SUPA PEG range.
The HD Hitch Tradesman III (SUPA PEG MODEL) is ideal for:
- SUPA PEG awnings with a single spine track with spacing of 33mm
- Pull-out and some wing-style SUPA PEG awnings with 3 mounting points (e.g. 1 vehicle + 2 awnings/accessories)
- Awnings or accessories with a max. load of 60kg (i.e. 20kg x 3 loading points)
NOTE: the SUPA PEG 270 Outbound Shield 6 requires the XD Hitch and XD Multi-Awn Adaptor.
The RacksBrax HD Hitch Tradesman III Pack includes a set of three glass reinforced nylon brackets with stainless steel fasteners to lock-on and take off extra heavy roof rack accessories including pull-out awnings, ensuite tents and conduit tubes. This pack also includes a set of two RacksBrax HD Wall Mounts so that the roof rack accessory can be fixed to a garage wall when not in use.

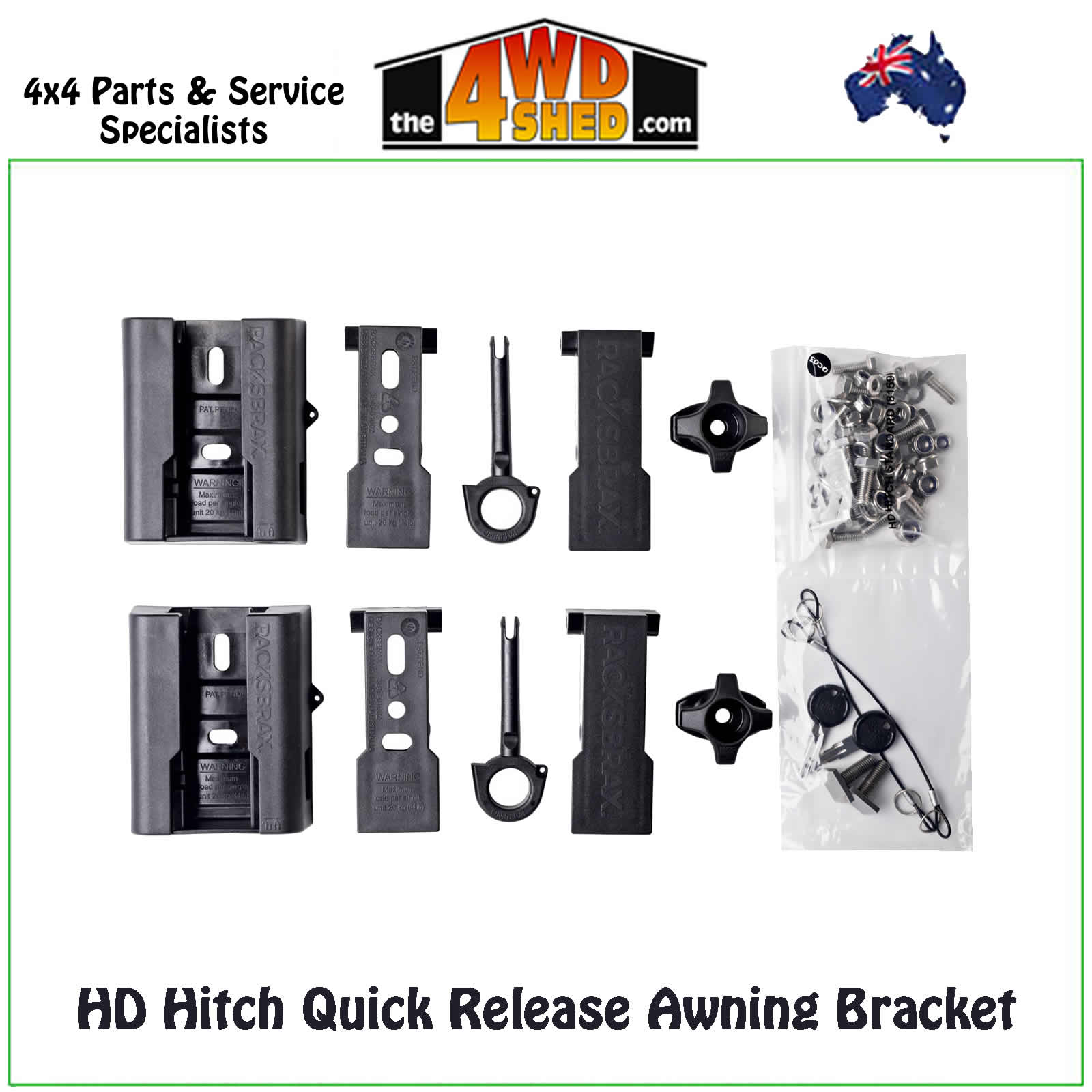

This pack contains:
- 1 x kit of 3x bodies: these bolt directly onto a roof rack or roof rack mounted pull-out awning bracket
- 2 x kit of 3x Holders: these bolt directly onto the pull-out awning or conduit tube clamps
- 3 x Pins (with lanyard): this ties each Body and Holder together on the roof rack; all of which are locked together with an in-built barrel lock
- Wall Mount Pack: 1 x pair of bracket bodies to fix to a garage wall to quickly swap from a pull-out awning to a conduit tube
- Assorted hardware to mount RacksBrax
The RacksBrax HD Hitch Tradesman III Pack also includes 2 Prop Cleats to enable a pull-out awning to be pitched freestanding once it is erected off the side of a vehicle. See instructions for more detail. The RacksBrax HD Hitch Tradesman III Pack comes with stainless steel fasteners to suit both M6 and M8 sized drill holes in either the awning bracket or the roof rack; both bolt sizes are also provided to allow for awning spine tracks which suit M6 or M8 bolts.
Fast on, fast off!
*Accessory brackets suited to roof racks are not included.
The 4WD Shed is an Authorised Dealer of RacksBrax products!
Compatibility - Check your awning against the list below. Some awnings may need a triple kit depending on weight. All Racksbrax products are a suggestion & if you need further confirmation please contact us before purchase.
FOR PULL-OUT AWNINGS
Track Spacing - Single
Track Spacing - 33mm
- SupaPeg Stand Easy ERV Rear Awning 1.3m Racksbrax kit 8179, 8180, 8181, 8183
- SupaPeg Stand Easy All Purpose Racksbrax kit 8179, 8180, 8181, 8183
- SupaPeg Stand Easy ERV Awning 2m Racksbrax kit 8179, 8180, 8181, 8183
- SupaPeg Stand Easy ERV Awning 2.5 Racksbrax kit 8179, 8180, 8181, 8183
Track Spacing - 50mm
- 23Zero® 23Zero Raven 2000 and 250 Racksbrax kit 8159, 8162, 8163, 8182
- Anaconda® Dune series Racksbrax kit 8159, 8162, 8163, 8182
- ARB® 2.5m x 2.5m Awning Racksbrax kit 8159, 8162, 8163, 8182
- ARB® Aluminium Encased Awning 2.5m x 2.5m Racksbrax kit 8159, 8162, 8163, 8182
- BCF® XTM Car Awning 2m and 2.5m Racksbrax kit 8159, 8162, 8163, 8182
- BCF® Wanderer Racksbrax kit 8159, 8162, 8163, 8182
- CAOS® Nomad Side Mounted Awning 2 x 3m, 2 x 2.5m, 2.5x2.5m Racksbrax kit 8159, 8162, 8163, 8182
- Darche® Eclipse Slimline 2 x 2.5m Racksbrax kit 8159, 8162, 8163, 8182
- Darche® Eclipse Slimline 2.5 x 2.5m Racksbrax kit 8159, 8162, 8163, 8182
- Howling Moon® Alu Awn Racksbrax kit 8159, 8162, 8163, 8182
- Howling Moon® Safari Awn Racksbrax kit 8159, 8162, 8163, 8182
- Howling Moon® Leisure Awn Racksbrax kit 8159, 8162, 8163, 8182
Track Spacing - Drill 2 x 45-50 centres
- Eezi-Awn® S1000 2m, 2.5m Racksbrax kit 8159, 8162, 8163, 8182
- Eezi-Awn® Retract 1.5m, 2m, 2.5m (and Black ver.) Racksbrax kit 8159, 8162, 8163, 8182
- Eezi-Awn® Retract 3m Racksbrax kit 8159, 8162, 8163, 8182
Please Note: These will not suit Darche or Super Wing Type Awnings.
FOR WING-STYLE AWNINGS (180°) (FOR WING AWNINGS WITH MOUNT POINT SPACING GREATER THAN 100MM, USE RACKSBRAX XD HITCH
Track Spacing - 33mm
Track Spacing - 100mm
- Oztent® Foxwing 180° Awning*+ Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Bar - 8175, HD Awning Adaptor Plate 8193
Track Spacing - 100mm+
- For Wing Awnings with Track bigger than 100mm please use XD Range
* Also works with XD Hitch and no Adaptors, but reduced headroom benefits are then lost but Foxwing brackets can be used.
+ Requires brackets with 50mm hole spacing - not Foxwing Brackets unless using XD Hitch (see XD Range Compatibility Chart).
FOR WING-STYLE AWNINGS (270°) (FOR WING AWNINGS WITH MOUNT POINT SPACING GREATER THAN 100MM, USE RACKSBRAX XD HITCH
Track Spacing - 33mm
- Adventure Kings® King Wing Racksbrax kit 8181, 8183
- SUPA PEG® Camper Trailer Square Back Deluxe (2.1 to 3.5m Racksbrax kit 8179, 8180, 8181, 8183
- SUPA PEG® Rapid 4 Wing Deluxe Awning 2.4m Racksbrax kit 8179, 8180, 8181, 8183
- SUPA PEG® Outbound Rapid 6 Wing Awning 2.4m Deluxe Racksbrax kit 8181, 8183
- Drifta® Drifta Rapid Wing Awning Racksbrax kit 8179, 8180, 8181, 8183
Track Spacing - 40mm
Track Spacing - 80mm
- CAOS® Nomad 270° Base Awning Racksbrax kit 8159, 8162, 8163, 8182, 8183, HD Awning Adaptor Plate 8192 8193
- CAOS® Nomad 270° Bub Awning (for Jeep/Suzuki) Racksbrax kit 8159, 8162, 8163, 8182, 8183, HD Awning Adaptor Plate 8192 8193
- Eezi-Awn® Bat 270 Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Plate 8192 8193
- Eezi-Awn® Manta 270 Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Plate 8192 8193
Track Spacing - 93mm
Track Spacing - 100mm
- Oztent® Foxwing 270° Awning*+ Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Bar - 8175, 8176
- Rhino-Rack® Batwing Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Bar - 8175, 8176
- Rhino-Rack® Batwing (Compact) Racksbrax kit 8159, 8162, 8163, 8182, HD Awning Adaptor Bar - 8175, 8176
Track Spacing - 100mm+
- For Wing Awnings with Track bigger than 100mm please use XD Range
FOR SHOWER TENT, ENSUITE STYLE AWNINGS
Track Spacing - 45mm
Track Spacing - 50mm
- 23Zero® Shower tent Racksbrax kit 8159, 8162
- Bushwakka (Australia)® Racksbrax kit 8159, 8162
- CAOS Nomad Shower Tent Racksbrax kit 8159, 8162
- Ironman 4x4® Instant Ensuite Shower Racksbrax kit 8159, 8162
- Kick Ass® Shower Tent Awning Racksbrax kit 8159, 8162
- Quick Pitch® Quick-en-Suite Bag Racksbrax kit 8159, 8162
Track Spacing - DRILL 2 x 50 centres
FOR RECOVERY BOARDS
Track Spacing - 890mm
- MAXTRAX® Mk II* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
- MAXTRAX® Xtreme* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
Track Spacing - 876-897mm
- TRED® 1100* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
- TRED® GT* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
- TRED® HD Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
- TRED® Pro* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
- TRED® ARB x TRED Pro* Racksbrax kit 8159, HD Accessory Bars - 8173, Accessory Plate - 8174
FOR STORAGE TUBES & BARRELS
Track Spacing - 100mm
Track Spacing - 150mm
Check out the FAQs for more info.
Make your awning stand up on its own with our HD Hitch range.
One of the things that blows people's minds is how we can make any pull-out awning (Foxwing Hitch range coming soon... watch this space) stand on its own without your vehicle in the way so it frees it up to go shopping, 4WDing somewhere else, etc. etc.
Using our HD Hitch range and Prop Cleats that come in the box, easily make your awning freestanding in no time at all!
What you'll need
- Any of our RacksBrax HD Hitches fixed to your vehicle and awning of choice
- Prop Cleats fixed to your awning (included in the box)
- 8 x guys ropes (we recommend 8; 2 for each corner) (not included)
- 8 x pegs (appropriate for the composition of the surface you want your awning to be standing on) (not included)
- A Mallet (not included: it couldn't fit in the box)

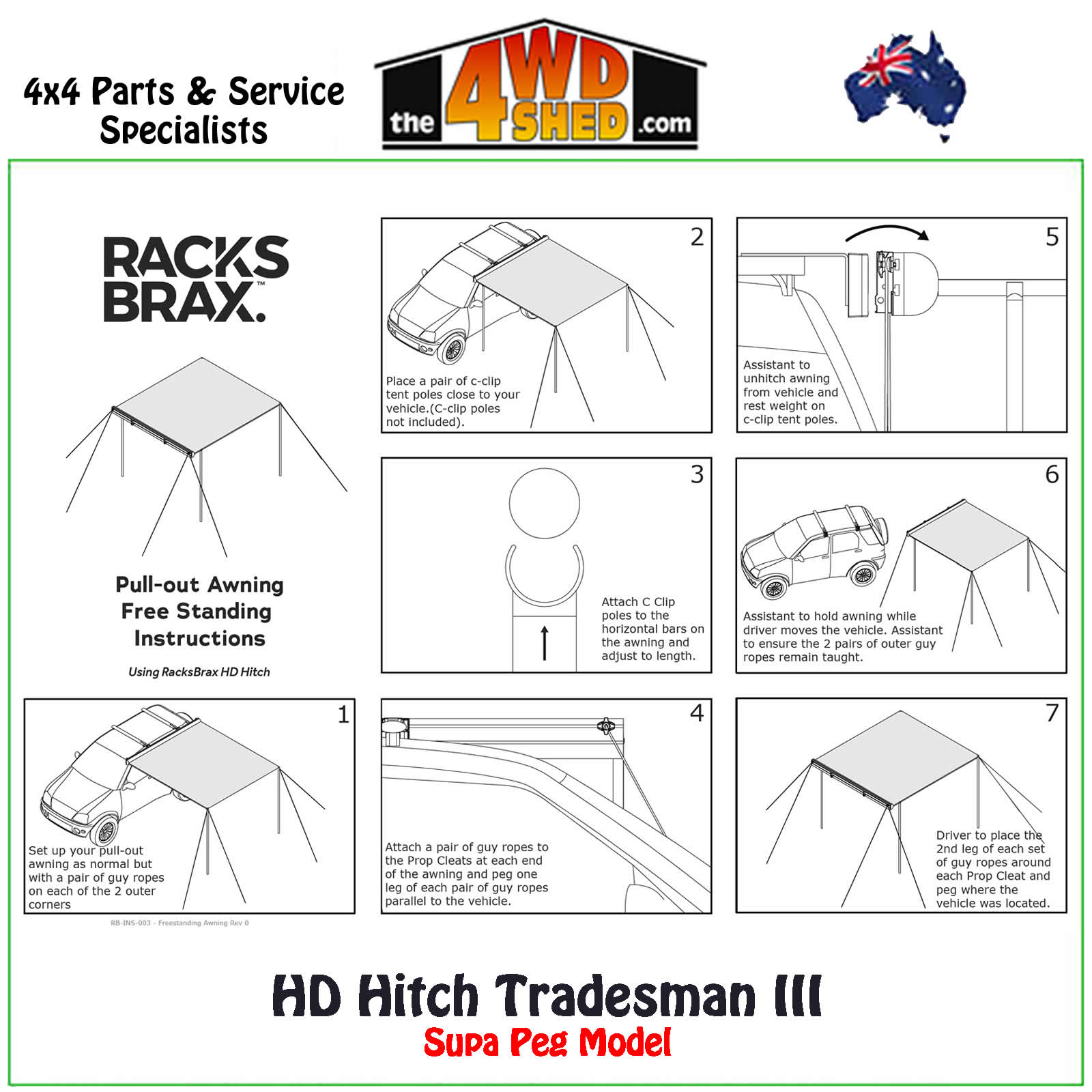

Just a few simple steps ...
- 1. Set up your pull-out awning as normal.
- 2. Place a pair of tent poles, featuring a c-clip, close to your vehicle. Attach these poles to the horizontal bars on your awning.
- 3. Attach a guy rope to the Prop Cleats at the front and rear sides of the vehicle and tighten pegs.
- 4. Unhitch awning from vehicle and rest weight on C-clip tent poles.
- 5. Move your vehicle.
- 6. Place another set of guy ropes around Prop Cleats and peg where your vehicle was.
- 7. Adjust pegs and pole placement if required.
RacksBrax - How to install your HD Hitch to your vehicle
(8181)
| SKU | 8181 |
| Barcode # | 9355802000217 |
| Brand | RacksBrax |
| Shipping Weight | 2.5100kg |
-
RacksBrax Products come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure of the Product. You are also entitled to have the Products repaired or replaced if the Products fail to be of acceptable quality and the failure does not amount to a major failure (the 'Warranty').
-
You may make a claim under this clause (the ' Warranty Claim') for material defects and workmanship in the Products within:
- 5 yrs. from date of purchase for injection molded plastic components (the ' Warranty Period').
- 1 yr from date of purchase for other components (the ' Warranty Period').
-
In order to make a Warranty Claim during the Warranty Period, you must be the original purchaser and provide proof of purchase from RacksBrax or an accredited RacksBrax Dealer showing the date of purchase of the Products, provide a description of the Products and the price paid for the Products by sending written notice to Engineered Touring Solutions Pty Ltd (RacksBrax) at PO Box 7081, East Brisbane, Queensland, 4169, Australia, or by email to sales@racksbrax.com.
-
Where the Warranty Claim is accepted then RacksBrax will, at its sole discretion, either repair or replace any defective Products or part thereof with a new or remanufactured equivalent during the Warranty Period at no charge to you for parts or labour. You acknowledge and agree that you will be solely liable for any postage or shipping costs incurred in facilitating the Warranty Claim.
-
The Warranty shall be the sole and exclusive warranty granted by RacksBrax and shall be the sole and exclusive remedy available to you in addition to other rights and under a law in relation to the Products to which this warranty relates.
-
All implied warranties including the warranties of merchantability and fitness for use are limited to the Warranty Period.
-
The Warranty does not apply to:
- any appearance of the supplied Product/s
- defects loss or damage where the Product/s has been damaged or defaced, which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction
- defects loss or damage caused by non-compliance with RacksBrax fitting instructions, including the recommended regular inspections of fastenings
- defects loss or damage caused by overloading the Product or exceeding the capacity of the vehicle and or roof rack manufacturers recommendations
- defects loss or damage caused by the improper or incomplete securing of any accessory load to the product i.e. the securing pin AND the supplied lock (where applicable) must both be inserted AND locked (respectively), prior to transporting an accessory
- defects loss or damage to pitched awnings resulting from wind conditions
- defects loss or damage by using non-RacksBrax replacement components
Please contact us at The 4WD Shed for any Warranty issues. Please do'n't send the item back without contacting us for a return id or process. We may ask you to send direct back to the supplier if required.
