Hi-Rise Tow Ball & Retention Locking Plate Kit

Hi-Rise Tow Ball & Retention Locking Plate Kit

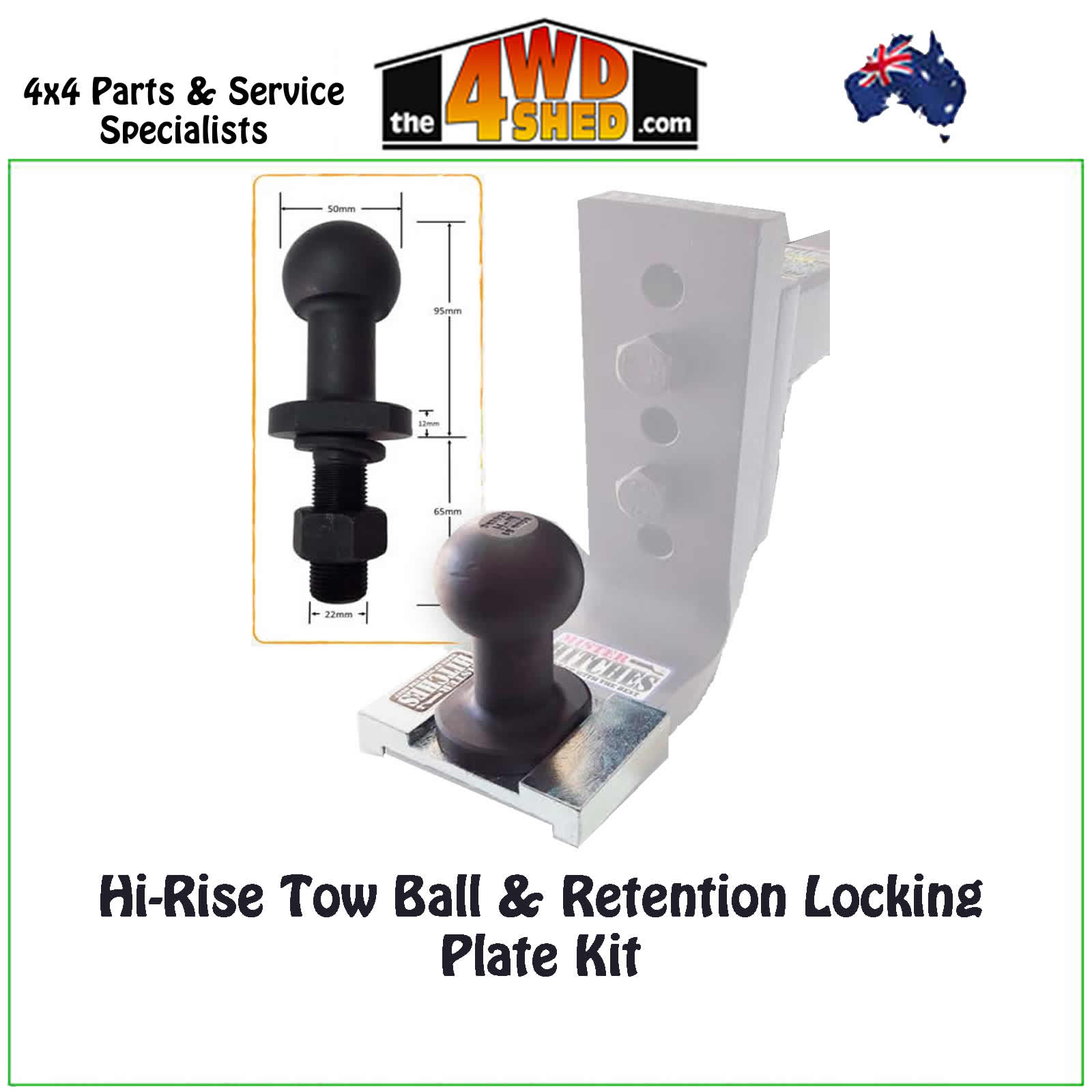

The Mister Hitches Hi-Rise tow ball is designed to give the user a little extra coupling height to enable a level ride height of the trailer or caravan or for use with European style friction head trailer couplings (Retention Locking Plate is required when used on these friction couplings)

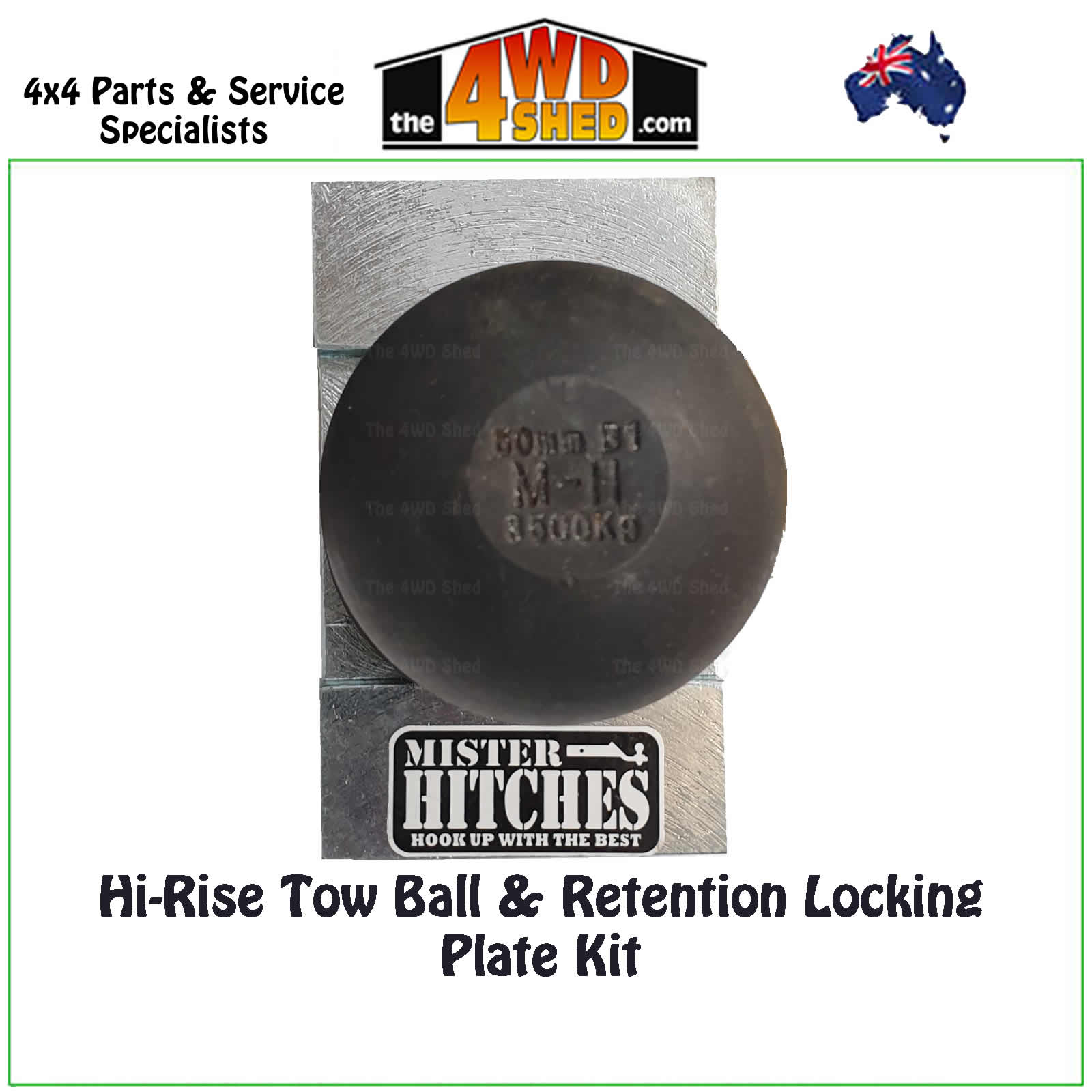

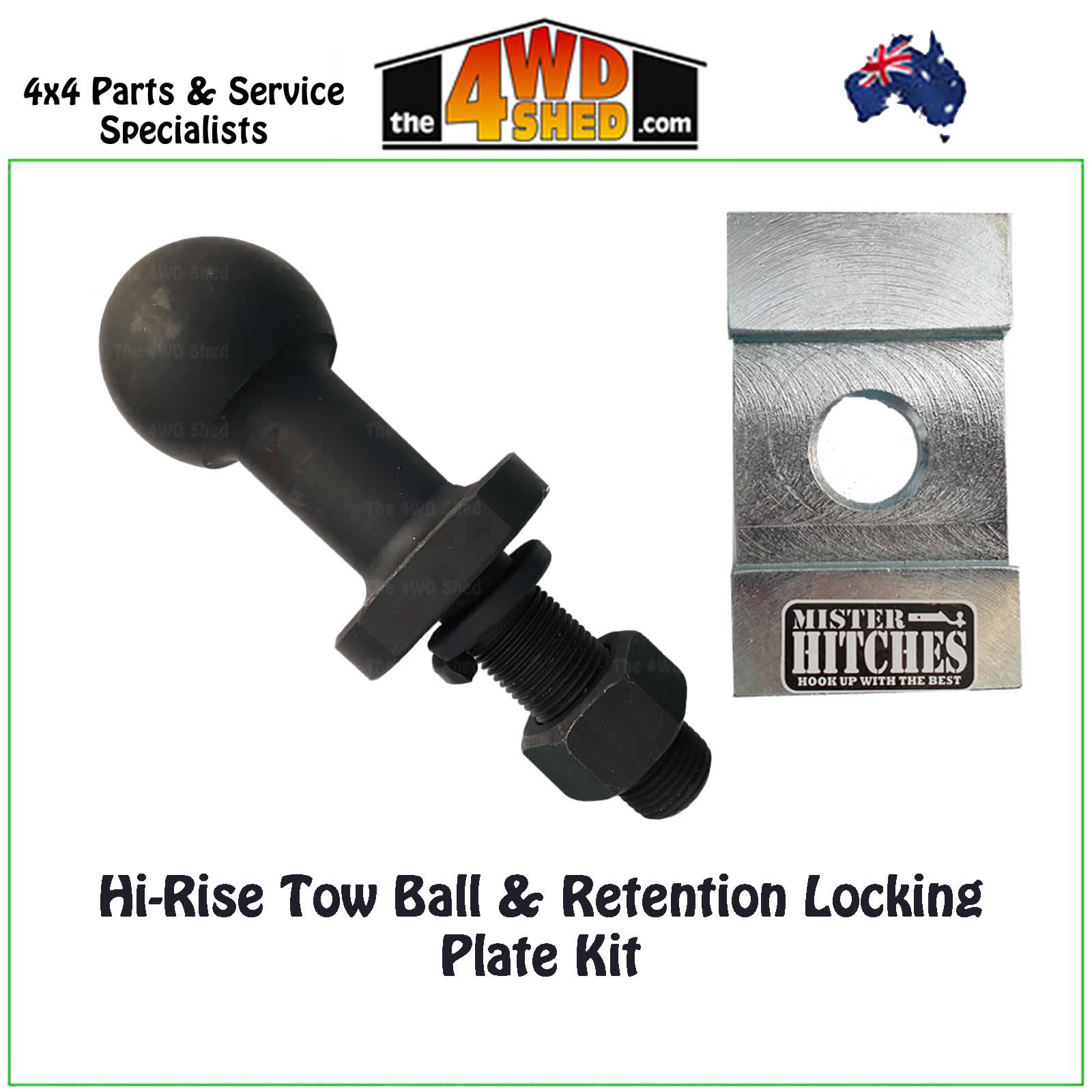

The Hi-Rise tow ball sits approx 24mm to 25mm higher than standard tow balls, the increased height ensures that the friction head couplings have adequate clearance from the trailer ball mount. To combat tow ball rotation, an anti-rotation retention mounting plate is included in the kit. The tow ball is mounted between grooves on the plate, preventing rotation of the tow ball when hooked up to a European style friction head trailer coupling.

The 50mm Hi-Rse tow ball is rated to 3500kg & meets the performance requirements of Australian Standard AS4177.2

Features

• TOW BALL IS BLACK OXIDE COATED FOR CORROSION PROTECTION
• TOW BALL SHANK LENGTH IS 65MM DIAMETER 22MM
• ZINC PLATED RETENTION LOCKING PLATE
• RETENTION PLATE SUITS 75MM WIDE BALL MOUNT PLATFORMS
• BALL DIAMETER: 50MM
• LOAD CAPACITY: 3500KG
• SHANK DIAMETER: 7/8" (22.2MM)
• SHANK LENGTH: 65MM
• FLAT SIDED BASE FOR EASE OF TIGHTENING & REMOVAL OR CAN BE USED WITH OUR LOCKING ANTI ROTATIONAL RETENTION PLATE - SOLD EXTRA
• 53mm BETWEEN TOW BALL FLATS
• INCLUDES SPRING WASHER & NUT
• COMPLIES WITH AUSTRALIAN STANDARDS AS/NZS 4177.2

Retention plate & tow ball should be used together when used in conjunction with a european style friction head coupling eg: Al-ko aks coupling

The Tow Ball is approx. 24-25mm higher than a standard Tow Ball.

This Tow Ball is suitable for use with the AL-KO AKS friction couplings AKS2003 & AKS3004
