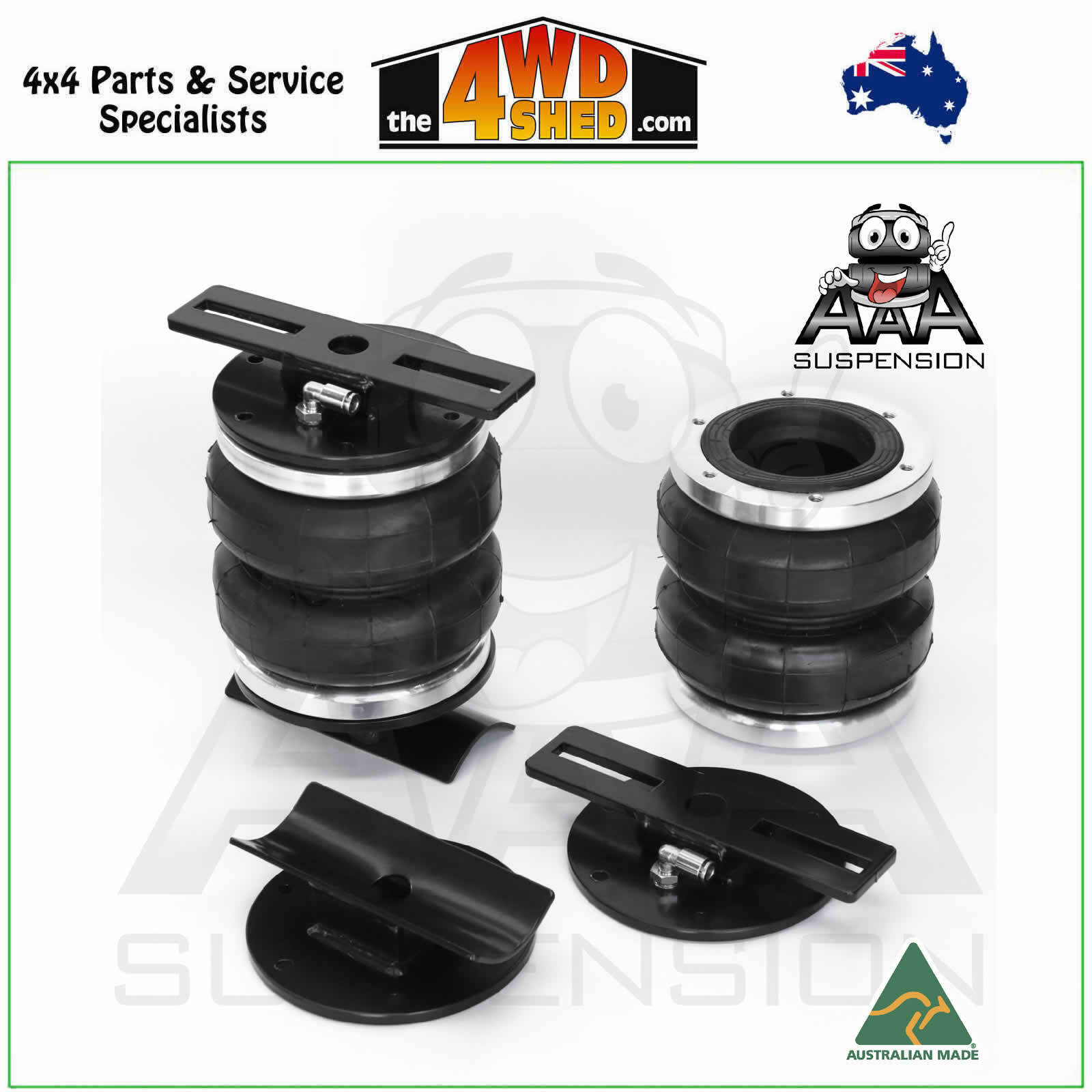

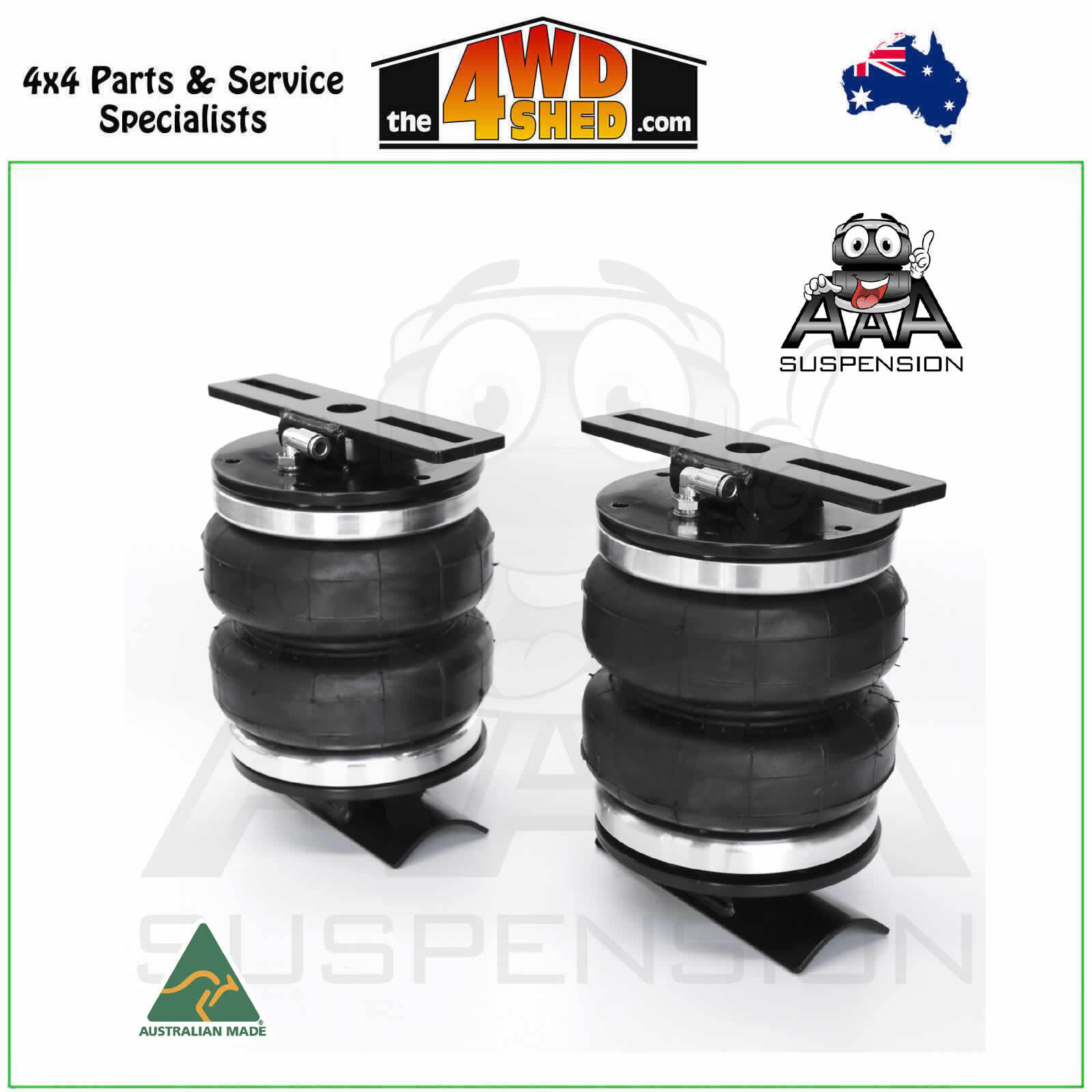

AAA Suspension LA01 (XS) Airbag Kit Leaf Rear NP300 Nissan D23 Navara

This is a brand-new airbag load assist kit to suit the rear of the following vehicles:

  • Leaf Rear NP300 Nissan D23 Navara 4×4

By selecting an “In-Cab Kit”, you will also be supplied with all the gear required to control the air in your bags from the inside of your vehicle and you can option for us to supply a compressor for you too if you do not already have one installed. Pair your large in-cab kit with one of our air tanks if you wish to increase the capacity of your onboard air system.

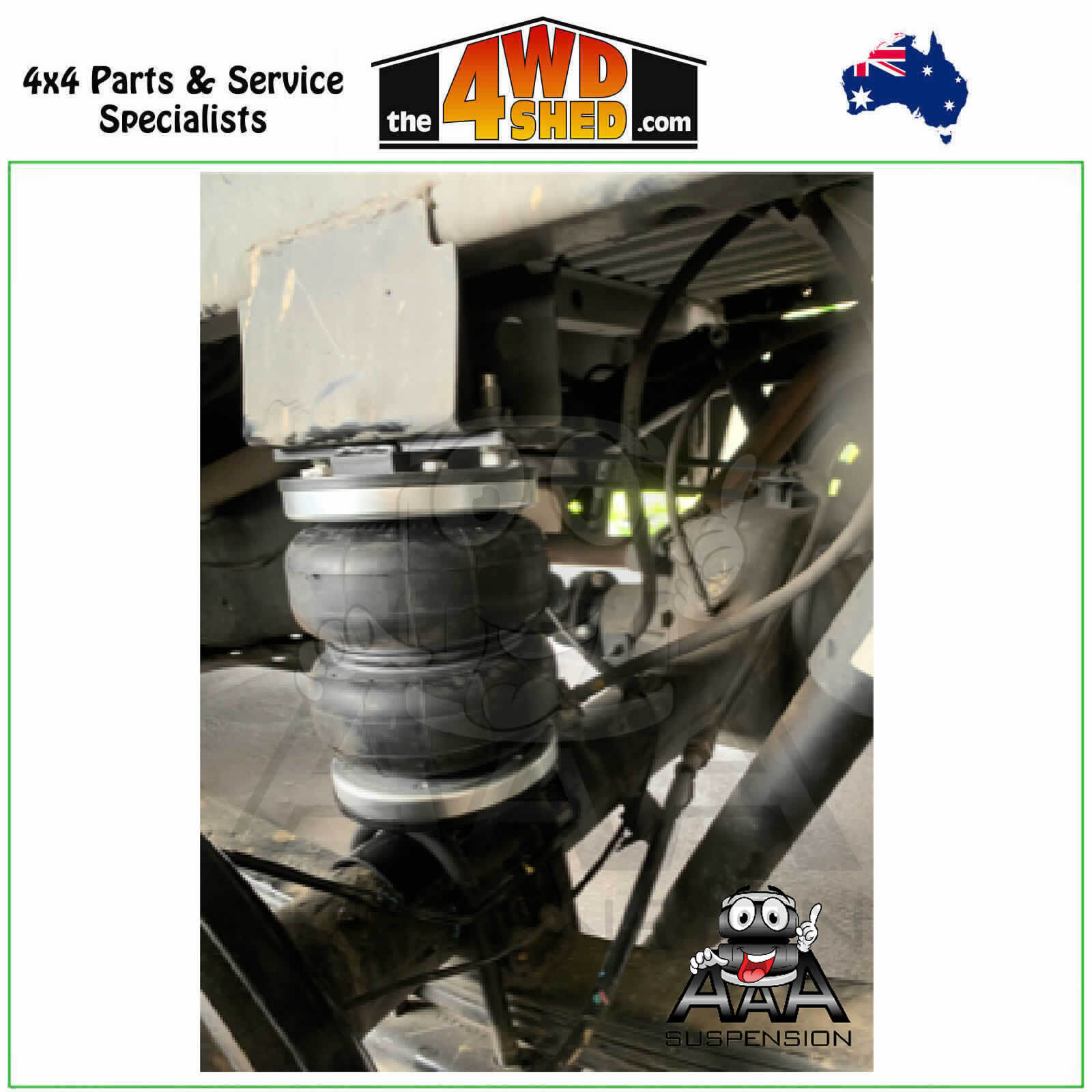

This model Navara has a spacer block between the chassis and the bump stop. As such there is less room for an air bag kit so we have made low profile top and bottom mounts and use our shorter 2400 bag in this kit. Refer to the pics attached to this listing to see the spacer block. If you don’t have this block then you need our LA10 kit.

The AAA leaf assist air bag kit replaces your bump stops and effectively becomes a bump stop conversion that can help you carry a load. When unloaded you want some air in the bags (10-15 psi) so you have some cushion or softness in the new bump stop effect. Then as you load up just add more air – what ever it takes to keep the vehicle level.  The AAA kit is rated at 2.5t so that’s the bags being capable of lifting 2.5t of additional weight over the rear axle. Your real limit is your GVM and what’s safe and sensible, but know the bags are up for what ever your load might be.

The rubber in the bags is heavier than the rubber in the sidewalls of your tyres so they last for ever seeing there is no rubbing or moving parts as such. AAA kits come with a 10 year new for old warranty on all bags, brackets, airlines and valves.

Please Note: AAA Suspension kits are made to order depending on your kit selection. We may ship direct from the warehouse. If there are any major delays, we will be in contact via email, so please make sure your contact details are correct.

Fitting is available at The 4WD Shed workshop in Bayswater Vic. Contact us for a quote on 03 9720 8783.

The 4WD Shed is an Authorised AAA Suspension Stockist & Fitter.

(LA01-XS)

SKU LA01-XS
Brand AAA Suspension
Shipping Weight 8.0000kg
