Rear Extended Shackles Toyota Hilux KUN

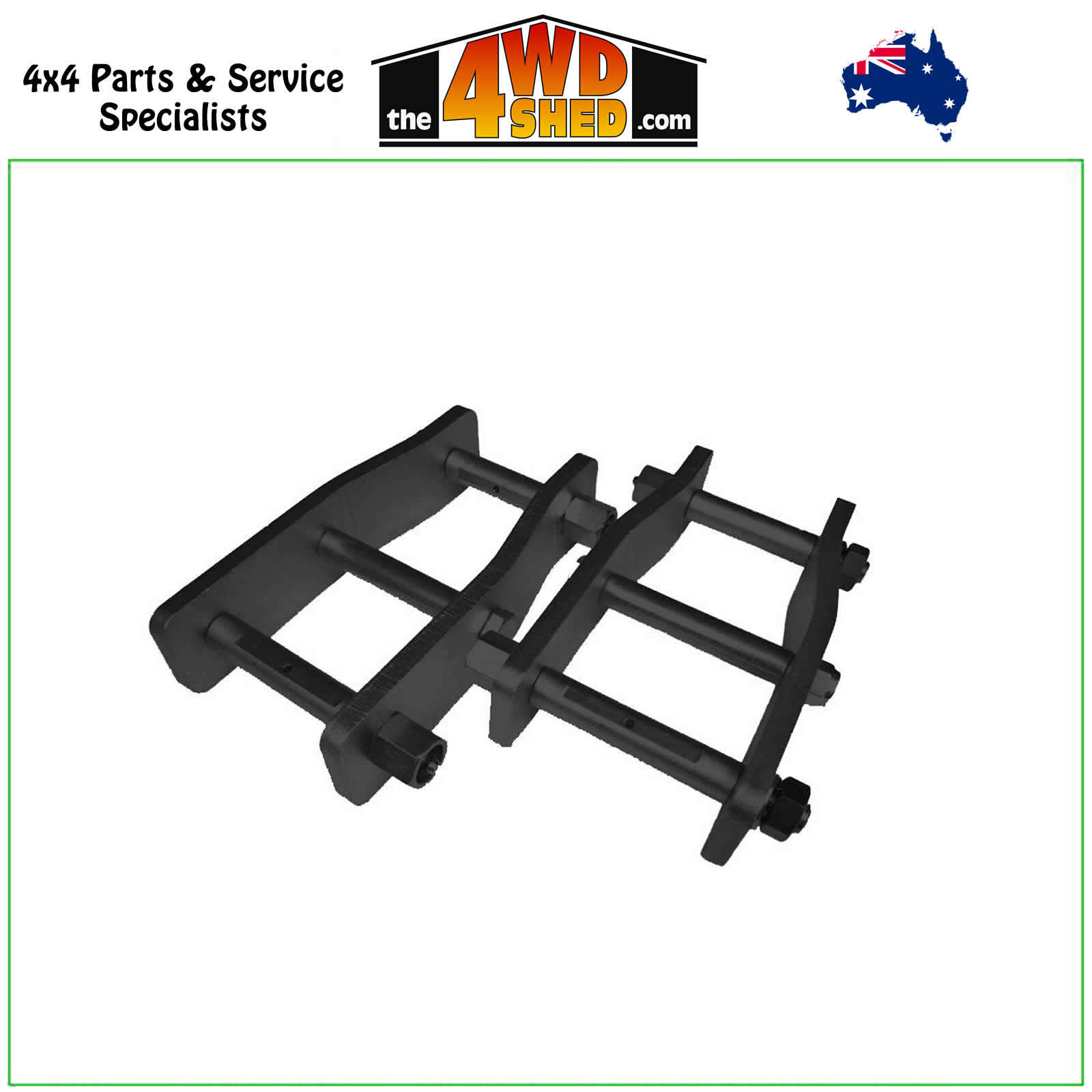

Roadsafe 4WD Rear Extended Shackles Toyota Hilux KUN 2005-2015

If you are after more flex in your vehicles rear end then Extended shackles are an easy way to achieve it. Basically the extended shackles creates a greater sweeping arc of the shackle which in turn provided for more wheel travel & a nicer ride. Roadsafe extended shackles are engineered to the highest standard, with factory size greasable pins (to allow installation of factory bushings) & 50mm extended plates. All Roadsafe extended shackles incorporate a stepped bolt design, ensuring that the shackles cannot be overtightened, to aid in bushing longevity.

Roadsafe extended shackles incorporate some great design features. Grease nipple protection is built in, to aid in avoiding grease nipple damage from rocks & debris that could be encountered in the installed position, in addition to offset grease holes for maximum grease dispersion, & improved bushing longevity. Giving 50mm more length than the factory shackle you will also see a lift of between approx 25-30mm depending on application.

Vehicle Compatibility

• Toyota Hilux KUN 2005-2015

Vehicle Location

• Rear

Coil Strut Spacer

• CSS-HIL25

Bushing

• SPF2672K

When fitting extended shackles, it is recommended to fit a 3 degree wedge to the front when using extended shackles. Want to give your vehicle an easy lift & fix that nose dive appearance by matching a pair of front coil strut spacers with the rear extended shackles. The 25mm front coil spacers will give you approx 37mm of lift & the 50mm rear extended shackles will give approx 25-30mm, so you can slightly raise the vehicle, increase rear articulation & decrease the nose dive appearance. Not available to suit all vehicles.

Sold as a PAIR

The 4WD Shed is an Authorised Stockist of Roadsafe 4WD.

Note: VSB14 states that extended or adjustable shackle plates must not be used to raise vehicles on leaf spring suspensions.
