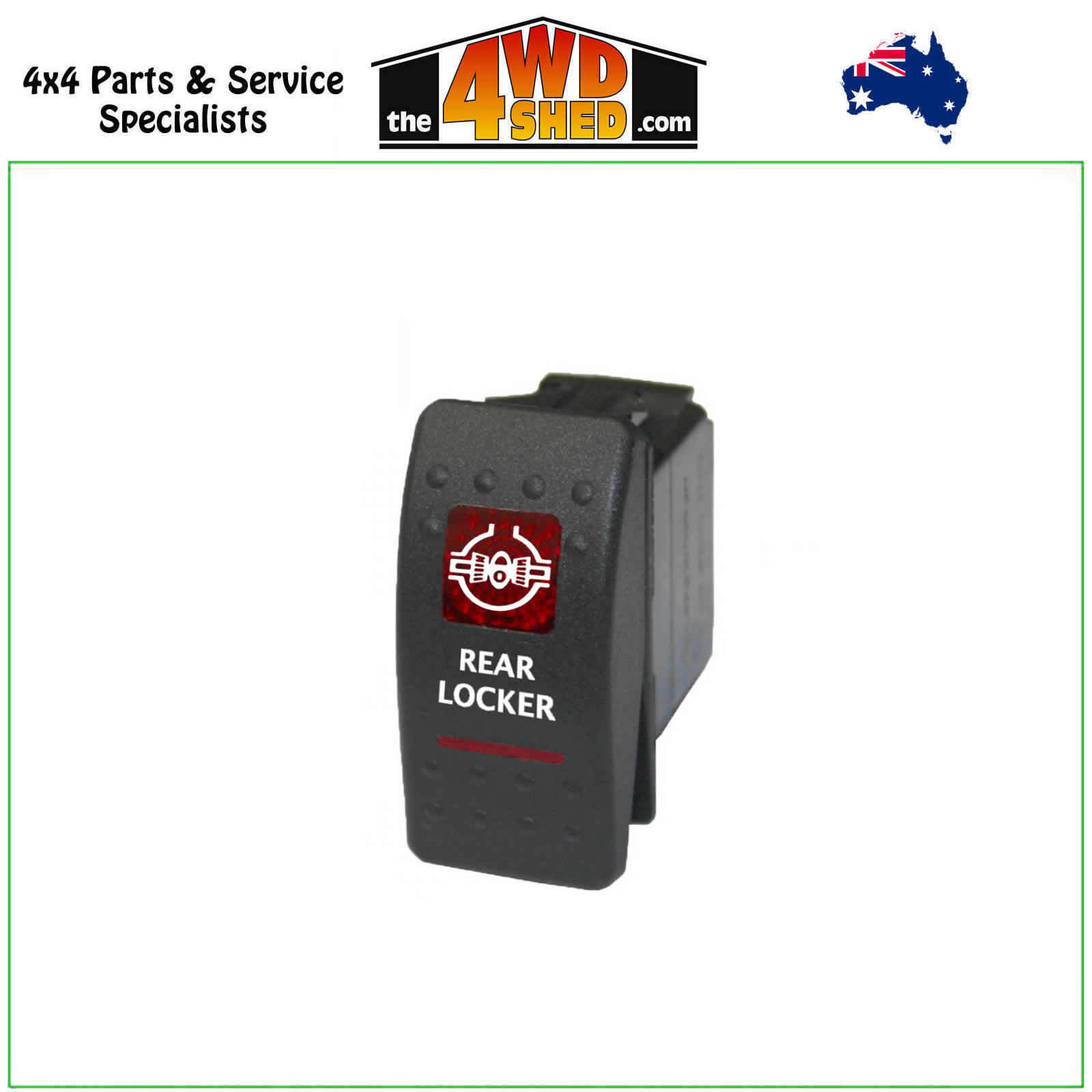

REAR LOCKER 531R Rocker Switch Dual LED Red ON-OFF

This high quality 12V/24V Rocker switch from AOB is a single throw ON - OFF switch designed to operate your accessories. It has a face surface size of 49.5mm x 24.5mm and uses a standard din size mounting hole of 37.5mm x 21.2mm. This is the standard size of most switch holes in modern vehicles, However it is best to check your particular hole size if unsure.

• Single Pole Single Throw ON - OFF switch
• Black hard surface rocker.
• Single upper L.E.D light.
• Single lower L.E.D light.
• Top window and bottom bar in RED.
• Upper light is ON when the switch is pressed UP.
• Lower light can be wired to a separate dash light circuit.
• Waterproof rating of IP66.
• Same size as the ARB switches.
• Rated 12V 20A / 24V 10A
• No rear barriers between terminals.
• Wiring diagram supplied with switch.

All symbols are printed directly onto the switch face using modern high-tech inks and printers to ensure long image life. We do not use stickers, which will wear off in a very short time.

The switch is rated to 20amp at 12V and 10amp at 24V.

However, in ALL case we recommend that you wire the accessory through a fused relay.
