Replacement Top Housing Gear Set for Warn 8274 Winch


Buying Options

Quantity Image Name Price
Standard Replacement Top Housing Gear Set for Warn 8274 Winch Standard Replacement Top Housing Gear Set for Warn 8274 Winch
$299.00
Sold Out
+15% Replacement Top Housing Gear Set for Warn 8274 Winch +15% Replacement Top Housing Gear Set for Warn 8274 Winch
$389.00
Sold Out

Gigglepin Replacement Top Housing Gear Set for Warn 8274 Winch

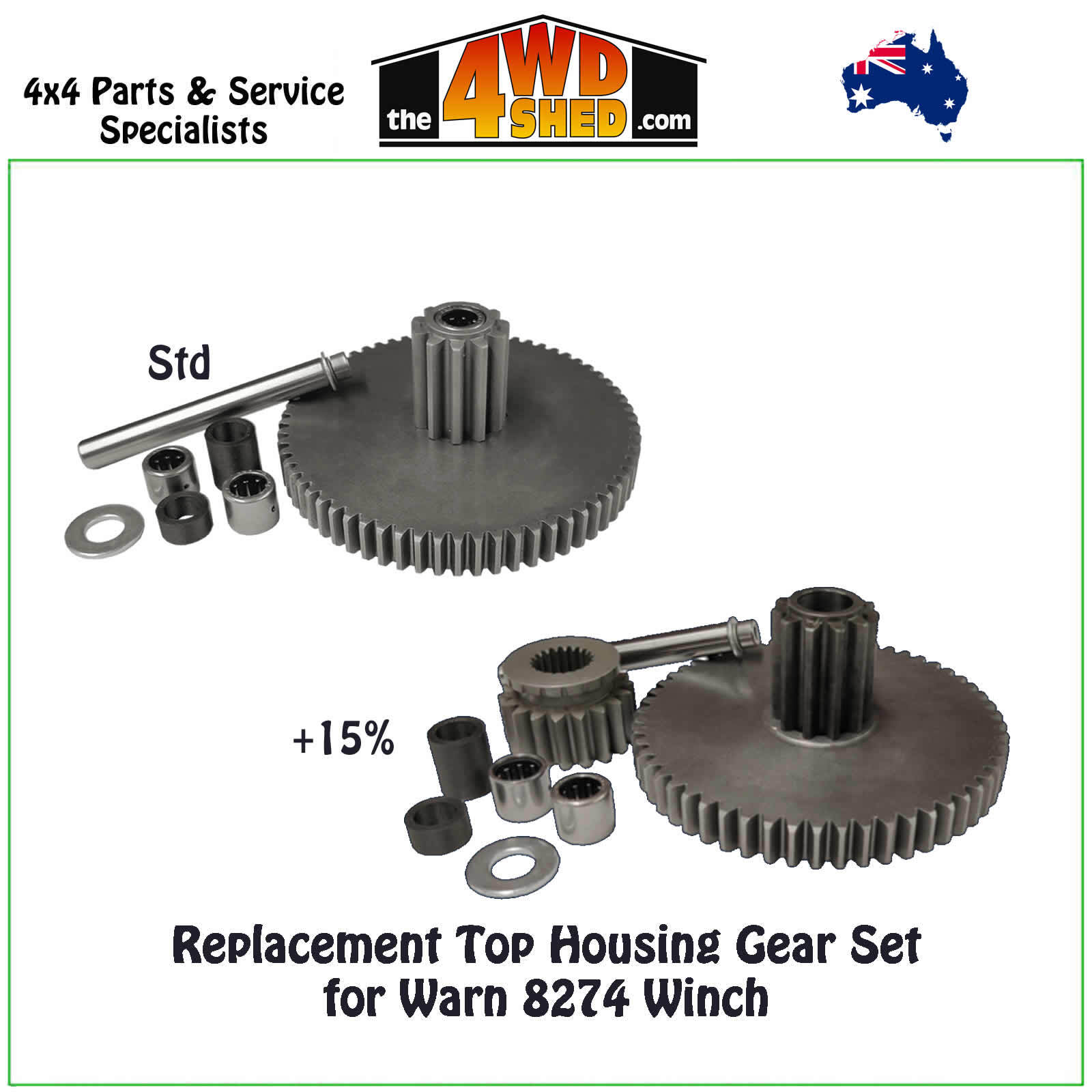

These gears are a direct replacement for the Warn 8274 Single Motor Top Housing Gears. Available in Standard ratio and in +15% for those that want the world to be a bit quicker.

The gears are manufactured from high performance case hardened materials and are engineered to add strength with improved tooth forms and increased gear engagement.

Each kit comes supplied with two fitted needle roller bearings and is supplied with the new Gigglepin centre shaft that requires no casing modifications to install.

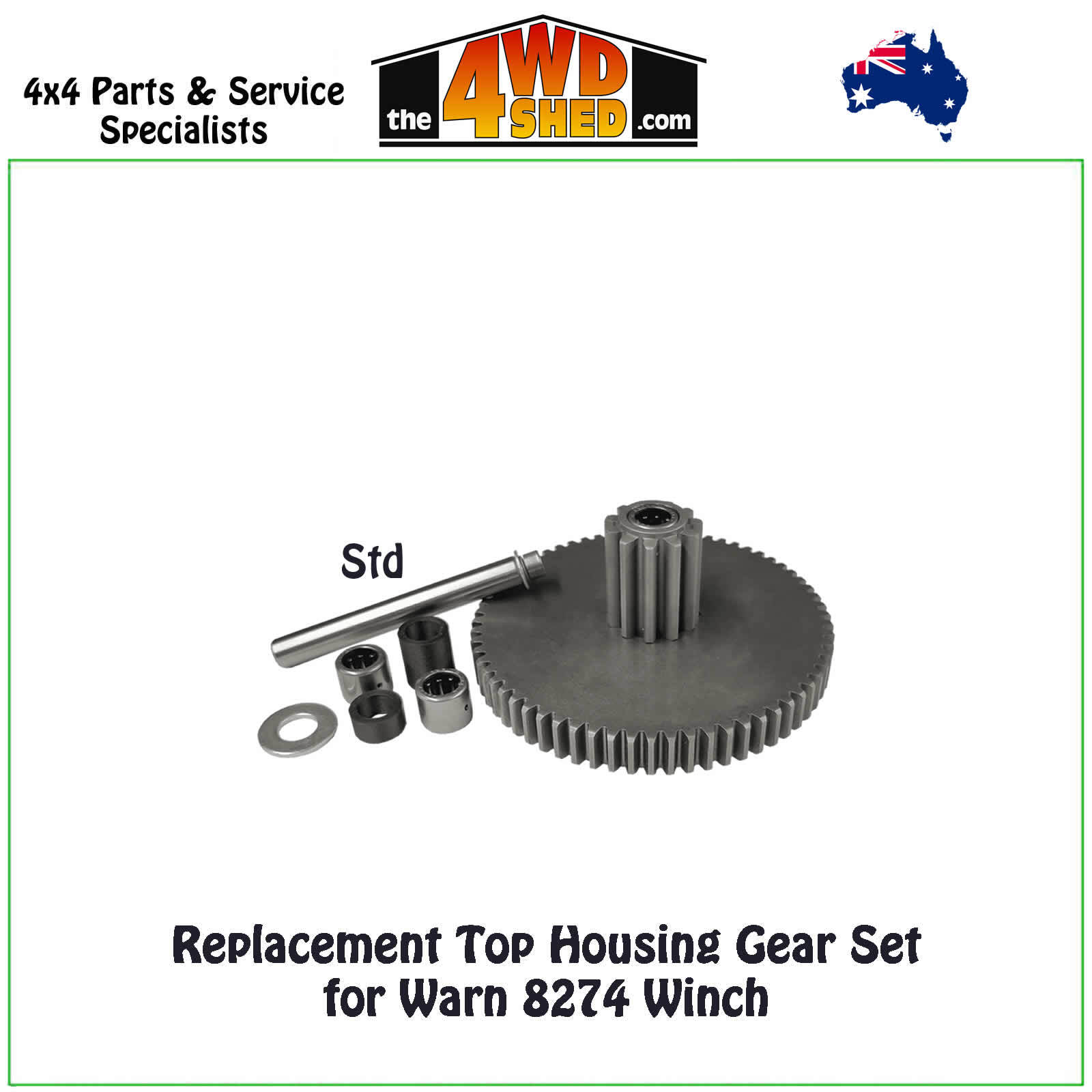

The Standard (G21025) centre gear is supplied as a single gear, with bearings, a Gigglepin centre shaft and comes with full instructions. It is compatible with Warn and Gigglepin 8274 Standard Pinion Gears.

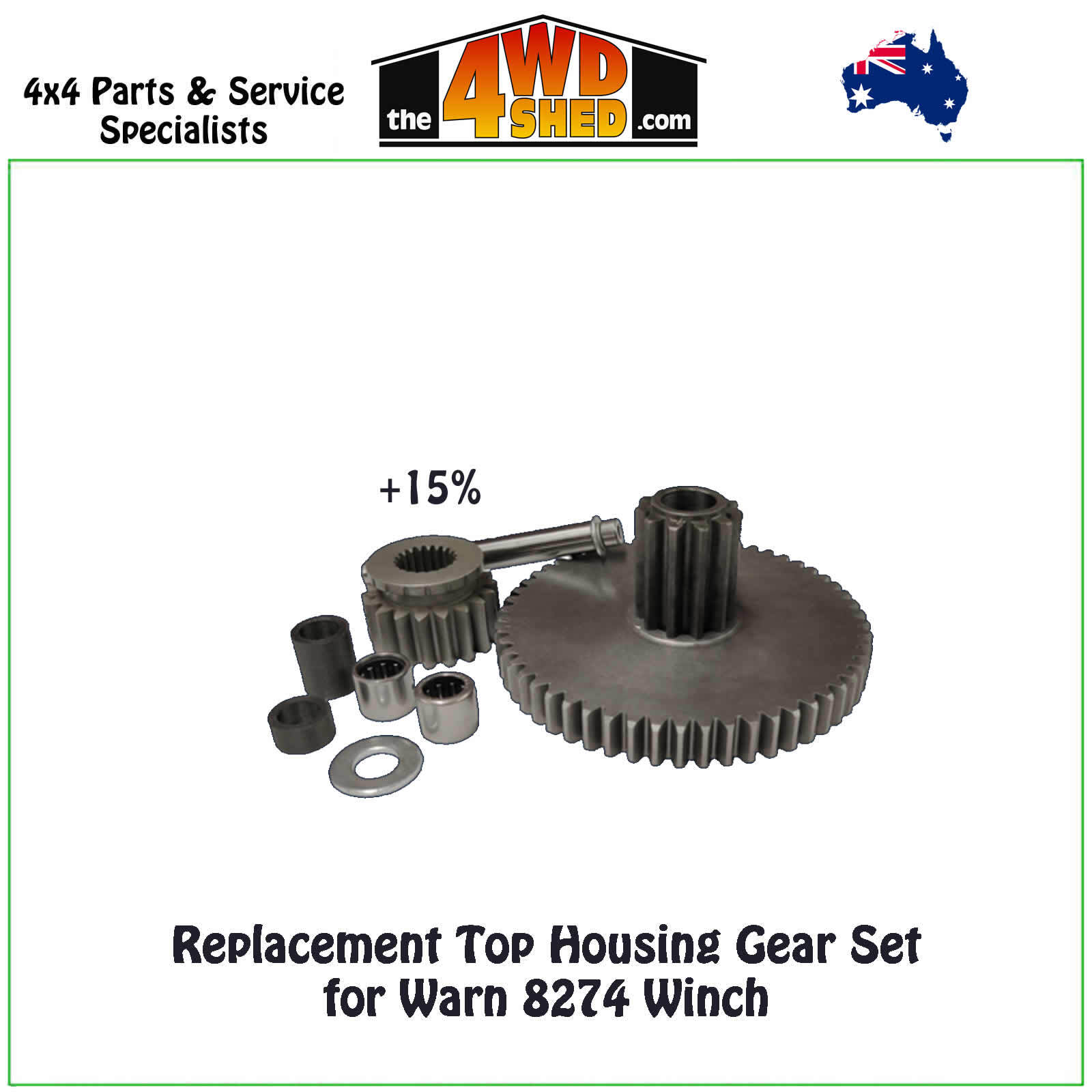

The 15% (G21026) centre gear is supplied with the +15% pinion gear, bearings, a Gigglepin centre shaft and comes with full instructions. Go to the “Product Options” tab to select the +15% gears. These gear kits allow you to repair those damaged 8274 top housings that were destined for the scrap pile.

* Supplied with instructions

The 4WD Shed stock, supply & fit a huge range of parts & accessories for your winch. Fitting is available at The 4WD Shed, additional costs may apply.

(G2102X)

SKU G2102X
Brand Gigglepin
Shipping Weight 1.5000kg
