Runva EWN17500 Winch 12V with Synthetic Rope

$1,575.00

More info.

Make 4 interest-free payments of $393.75



In Stock


Calculate Shipping



1 x Runva EWN17500 Winch 12V with Synthetic Rope delivered to , AU


Oversize Flat Rate - $49.00
Business address preferred. An excess shipping charge to send your oversized item to a residential address or if in a remote & regional area may be incurred.

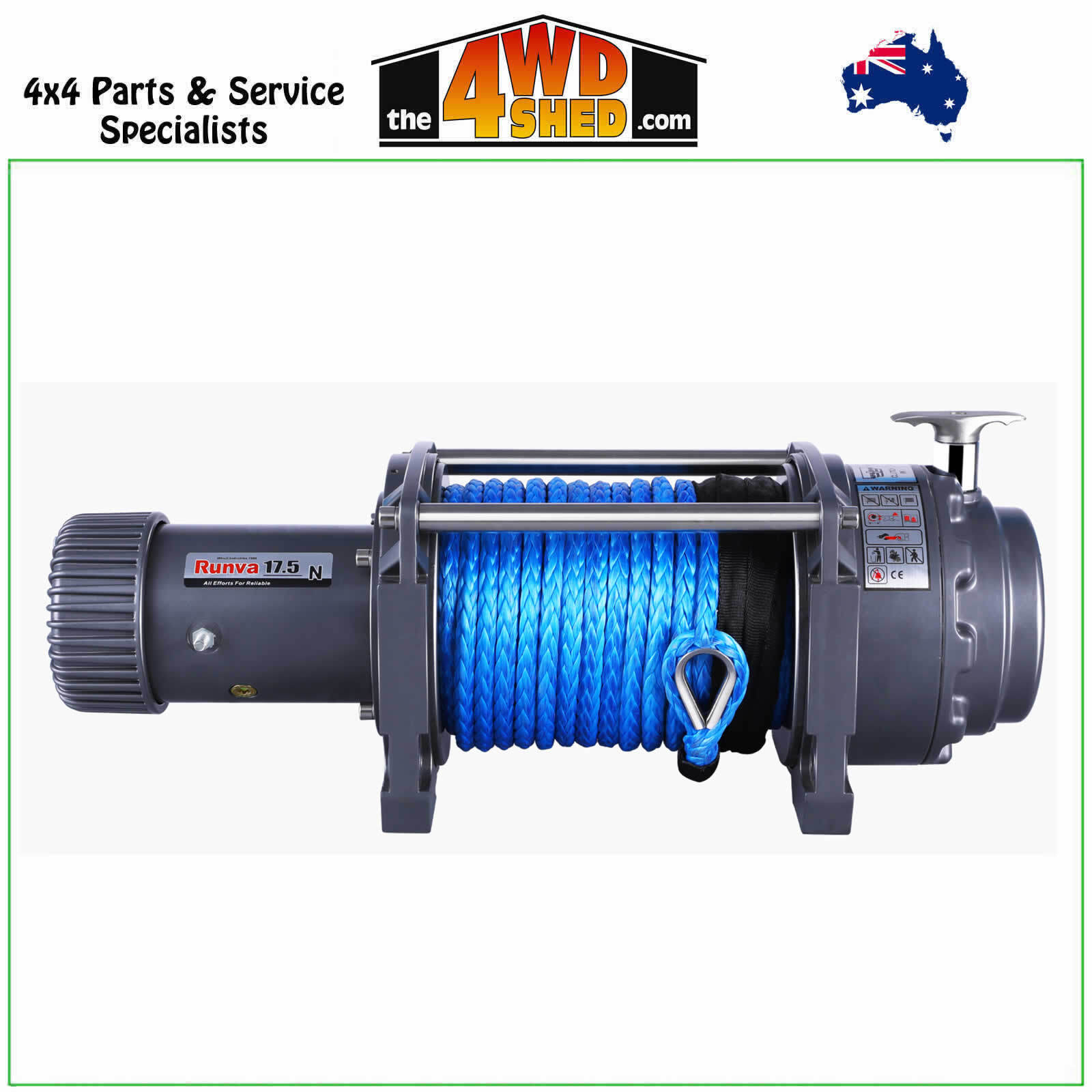

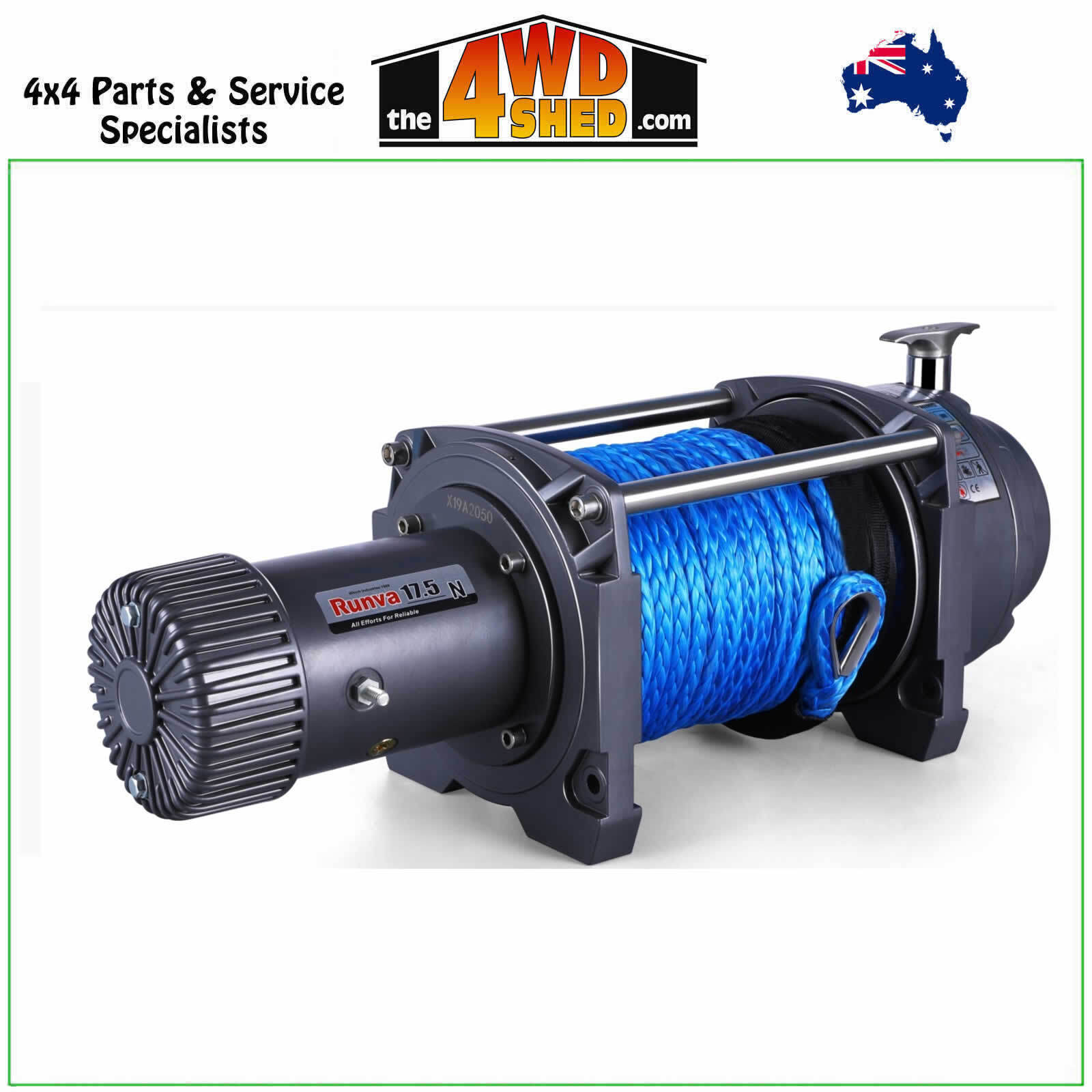

Runva EWN17500 12V with Synthetic Rope

  • 17,500LB LINE PULL CAPACITY
  • HEAVY DUTY – SUITABLE FOR COMMERCIAL APPLICATIONS
  • IDEAL FOR EXPEDITION VEHICLES LIKE UNIMOG OR IVECO
  • AVAILABLE IN 12V AND 24V
  • STEEL CABLE OPTION AVAILABLE

The Runva EWN17500 has a massive 17,500lb of line pull from its powerful 7.1HP motor. The gearbox is a patented three stage planetary setup with super tough 430:1 gear ratio to handle even the toughest recoveries. The higher gear ratio means this winch was not designed for speed, but will keep on pulling.

The clutch is easy to operate and designed to suit commercial applications. Braking is automatic via the trusted screw cone system.

If you are looking for a heavy duty winch for either recreational or commercial applications, the EWN17500 is a great option. This model is perfect for your expedition Unimog, Iveco Daily, Tow Truck + many other applications. (Also check out the Runva EWB20000 Premium for larger applications + additional features.)

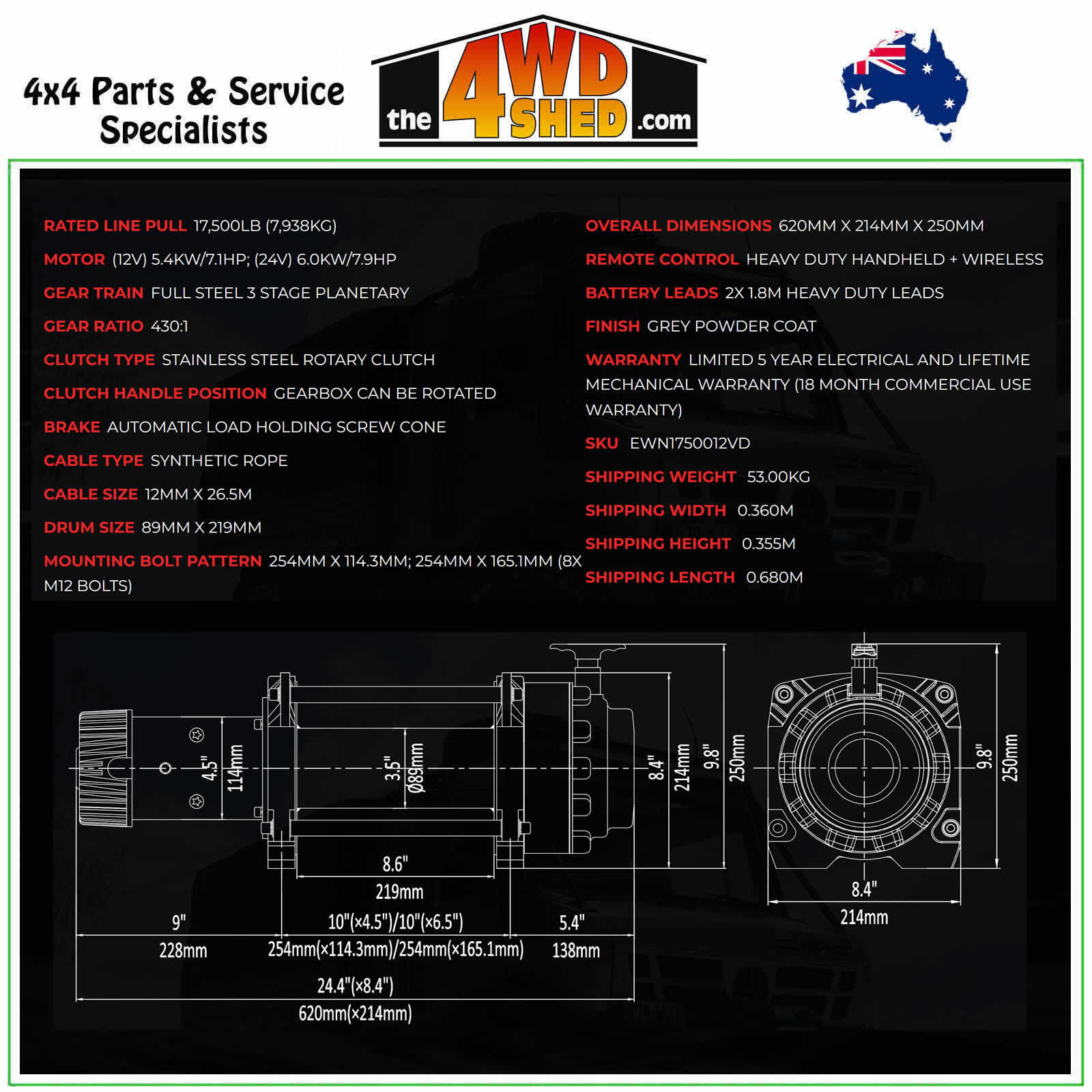

RATED LINE PULL 17,500LB (7,938KG)
MOTOR (12V) 5.4KW/7.1HP; (24V) 6.0KW/7.9HP
GEAR TRAIN FULL STEEL 3 STAGE PLANETARY
GEAR RATIO 430:1
CLUTCH TYPE STAINLESS STEEL ROTARY CLUTCH
CLUTCH HANDLE POSITION GEARBOX CAN BE ROTATED
BRAKE AUTOMATIC LOAD HOLDING SCREW CONE
CABLE TYPE SYNTHETIC ROPE
CABLE SIZE 12MM X 26.5M
DRUM SIZE 89MM X 219MM
MOUNTING BOLT PATTERN 254MM X 114.3MM; 254MM X 165.1MM (8X M12 BOLTS)
OVERALL DIMENSIONS 620MM X 214MM X 250MM
REMOTE CONTROL HEAVY DUTY HANDHELD + WIRELESS
BATTERY LEADS 2X 1.8M HEAVY DUTY LEADS
FINISH GREY POWDER COAT
WARRANTY LIMITED 5 YEAR ELECTRICAL AND LIFETIME MECHANICAL WARRANTY (18 MONTH COMMERCIAL USE WARRANTY)

Contact us if you require the 24V option, steel cable or the bare unit only. These options are available as an order in item.

Included Accessories



https://www.runvawinch.com.au/assets/image_product_page/include/EWL_include.png

The 4WD Shed is an Authorised Dealer for Runva Winches & Accessories

Shipping Note: Flat Rate Shipping covers most metro areas in Australia. However extra freight charges may apply if residential or in a remote or regional area. We will contact you to advise if this applies to your order.

Shipping Weight 53.00kg
Shipping Width 0.360m
Shipping Height 0.355m
Shipping Length 0.680m

(EWN1750012VD)

SKU EWN1750012VD
Brand Runva
Shipping Weight 55.0000kg
