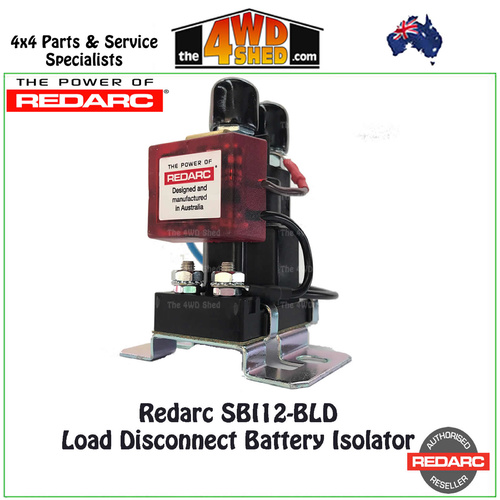

SBI12-BLD Load Disconnect Battery Isolator 12v
More infoRedarc SBI12-BLD Load Disconnect Battery Isolator 12v 100A For LiFePO4
The SBI12-BLD is recommended by Redarc to used in conjunction with The Manager30 Battery Management System BMS1230S2 in a 12v system to protect the battery from excessive discharge.
Specifically designed for use as the load disconnect solenoid controlled by the Battery Management System.
The Isolator monitors the auxiliary battery, when the voltage drops to below the settings in the Management System the solenoid will disconnect the load protecting your battery from over charging.
With a 2yr Warranty we have you covered when buying Redarc!
The 4WD Shed is an Authorized Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
| DIMENSIONS | 75mmx70mmx80mm |
| WEIGHT | 200g |
| VOLTAGE | 12 Volt |
| OFF VOLTAGE | 10.0V |
| ON VOLTAGE | 10.2V |
| TIME DELAY | 5sec |
| MAX CONTINUOUS | 100 Amps |
| MAX MOMENTARY AMPERAGE | 400 Amps |
(SBI12-BLD)
| SKU | SBI12-BLD |
| Brand | Redarc |
| Shipping Weight | 0.4000kg |
