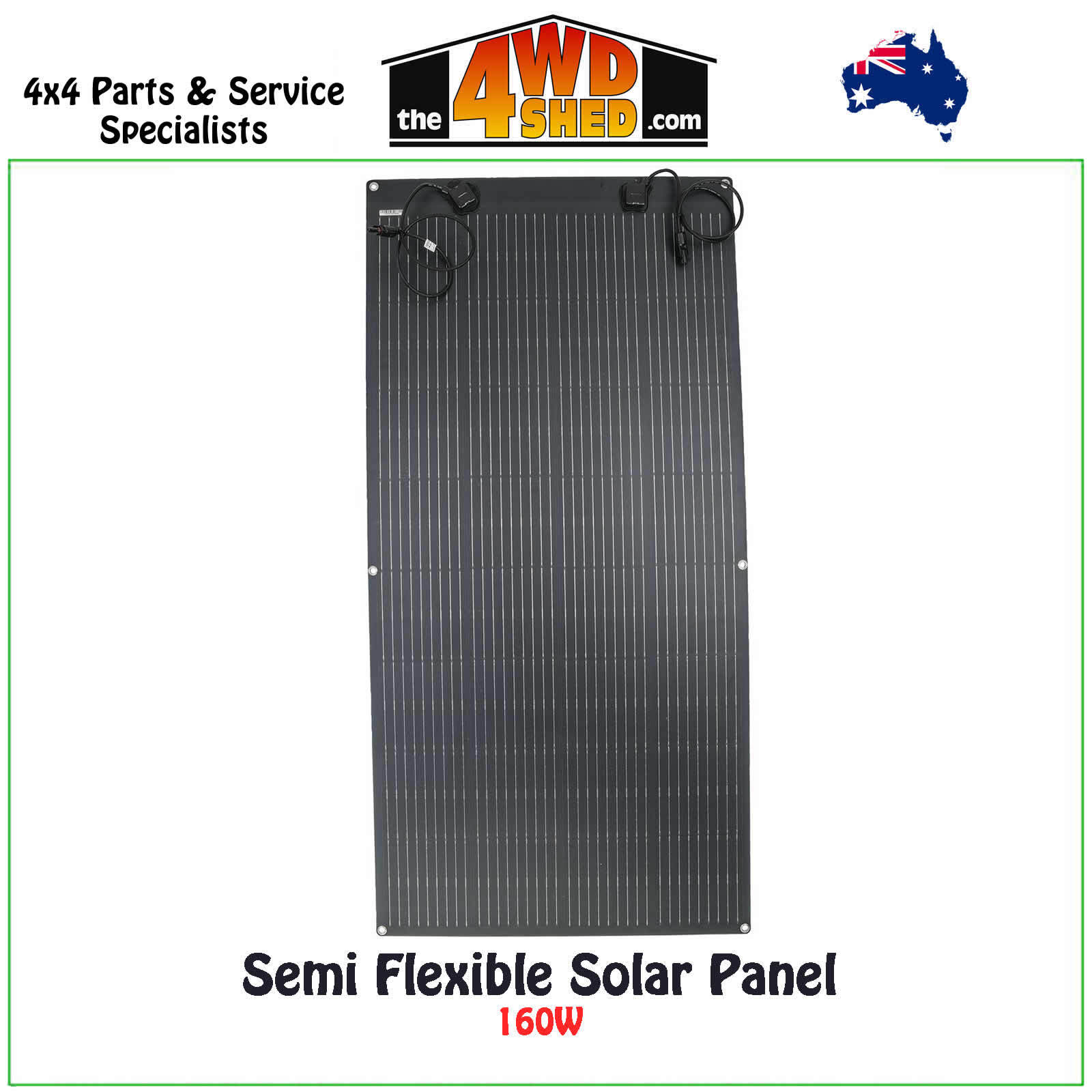

Semi Flexible Solar Panel 160W

Drivetech 4x4 Flexible Solar Panel 160W

High quality, lightweight solar panels designed for camping and 4WD off-roading.

Backed by a 12 month guarantee and crafted with high quality, lightweight and durable materials, you can be sure it will last the distance.

Each panel is manufactured with monocrystalline solar cells which provide better sunlight absorption and more power when compared to traditional polycrystalline panels. Ideal for caravans, camper trailers, boats and 4x4s.

Feature

• Open Measurements 1370x670x3mm
• Open Circuit Voltage 21.9V
• Short Circuit Current 9.37A
• Portable Compact & Lightweight

Specifications

• Part Number DTSPF160
• Rated Maximum Power (PM) 160W
• Voltage at Pmax (Vmp) 18.5V
• Current at Pmax (Imp) 8.75A
• Open-Circuit Voltage (Voc) 21.9V
• Short-Circuit Current (Isc) 9.37A
• Dimensions (HxWxD) 1370x670x3mm
• Weight 3.9kg
• Cell Type Monocrystalline
• Tolerance ± 3%
• Normal Operating Cell Temp (NOCT) 47 ± 2°C
• Maximum System Voltage 1000VDC
• Maximum Series Fuse Rating 20A
• Operating Temperature -40°C to +85°C
• Application Class - Class A

Drivetech 4x4 Flexible Solar Panels are in a range of sizes. Please see below

• Flexible Solar Panel 60W
• Flexible Solar Panel 80W
• Flexible Solar Panel 110W
• Flexible Solar Panel 160W
