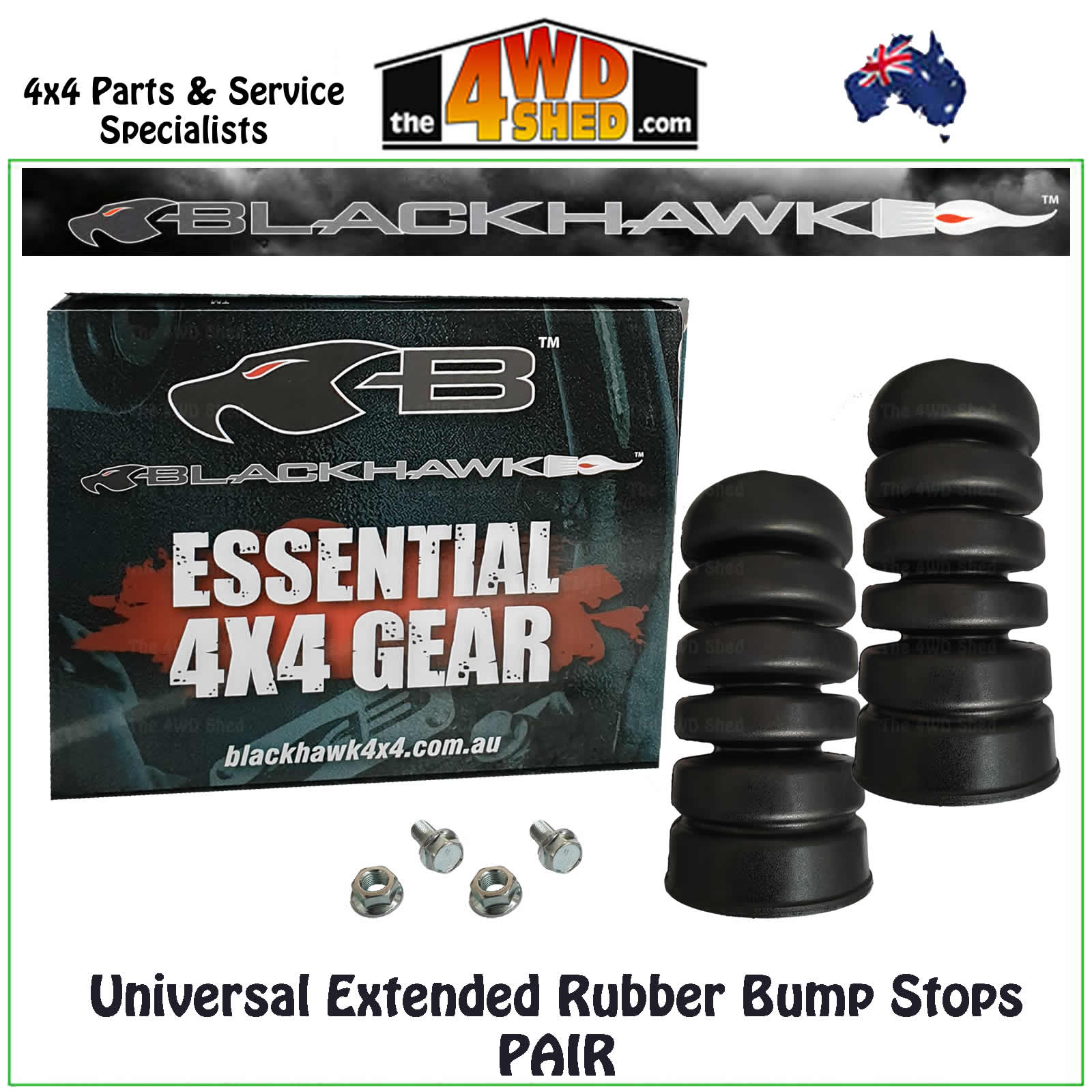

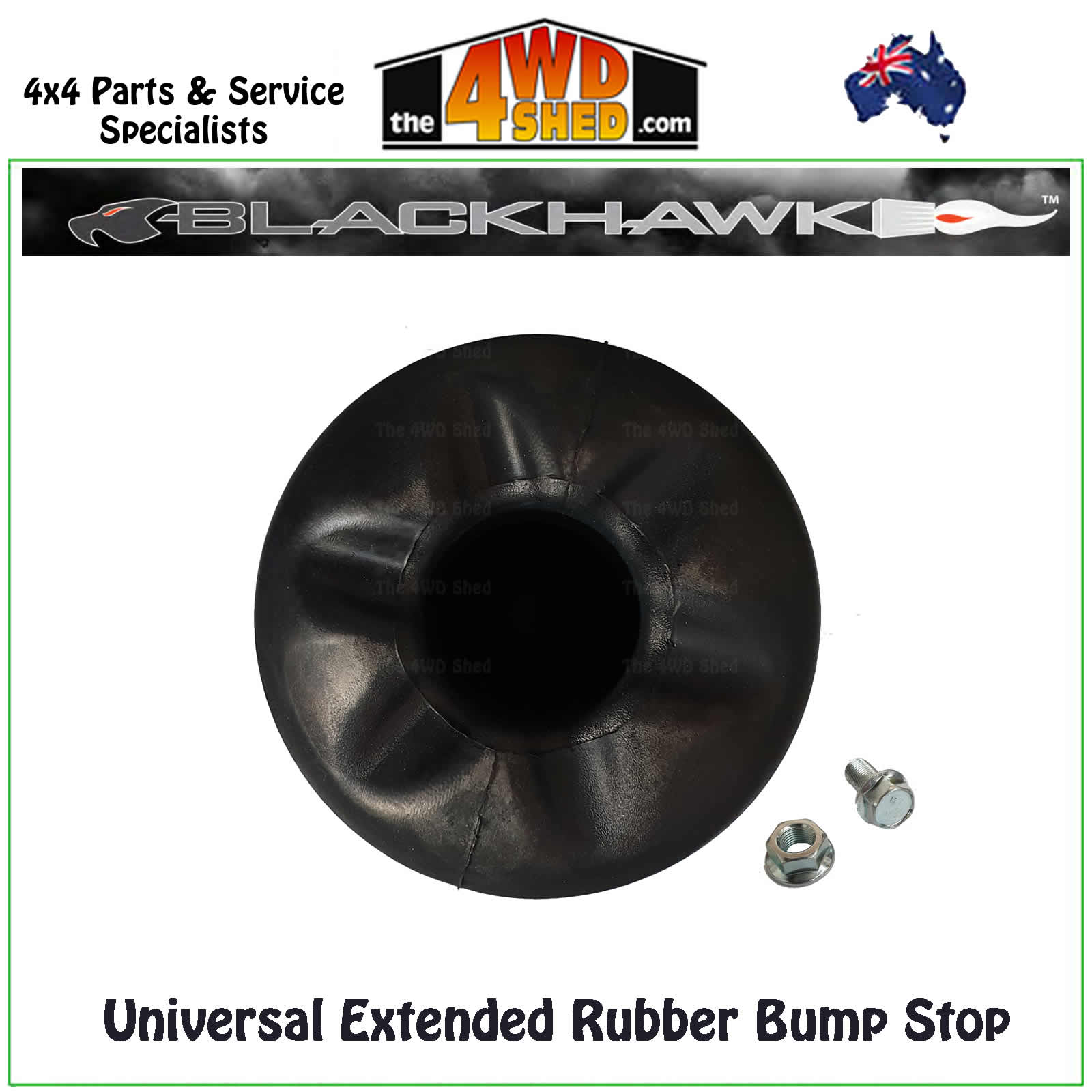

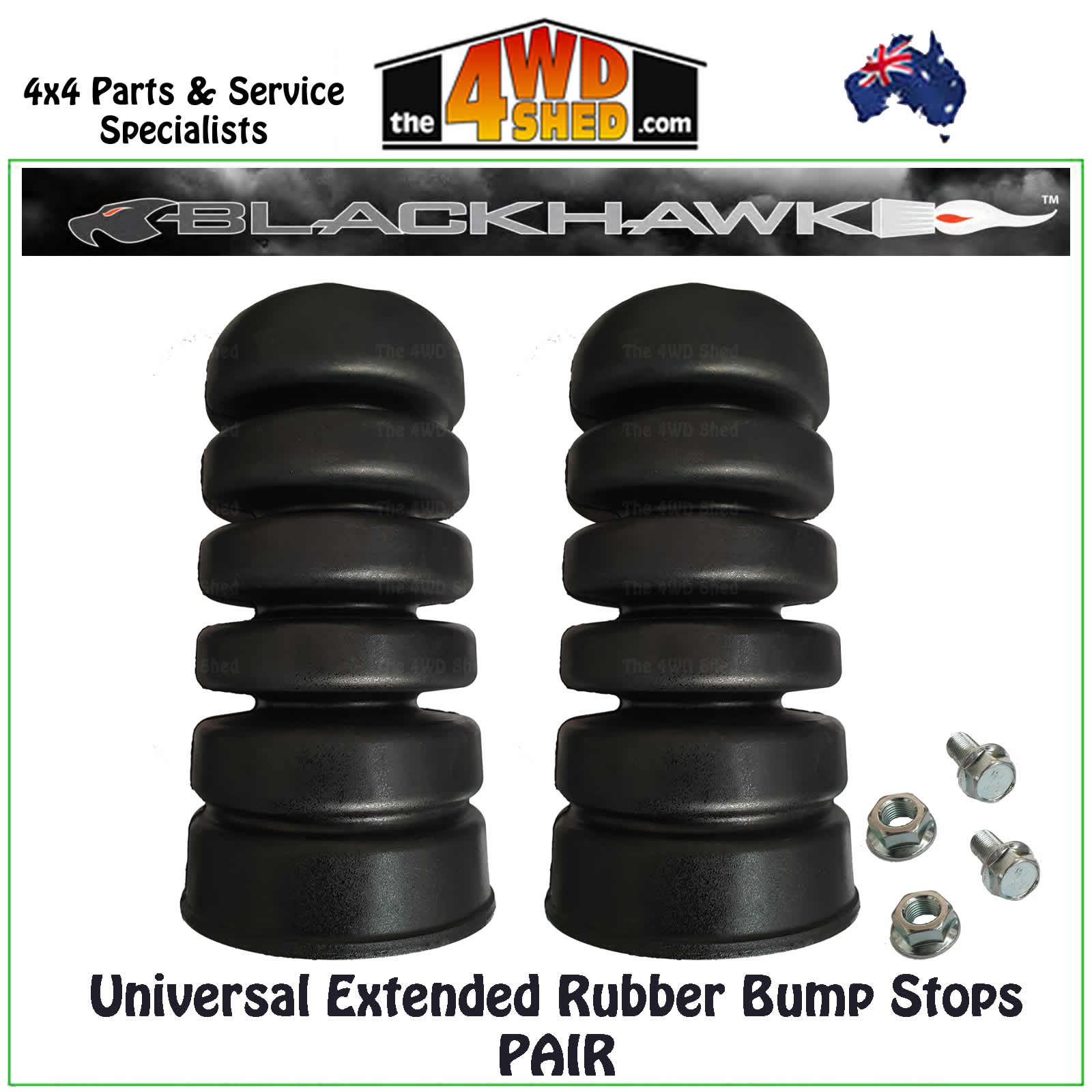

Universal Extended Rubber Bump Stops PAIR GQ GU 80 105 Series NP300

Blackhawk 4x4 Universal Extended Rubber Bump Stop - PAIR

This Bump Stop is derived from an OE design. Blackhawk4x4 have identified the current OE & Aftermarket offerings fall short of delivering the complete solution.
We can now offer a truely progressive rate, genuinely extended Bump Stop when installed into the following applications:

• OE Nissan Patrol GQ/GU Front (35mm extended @ 7kN)
• OE Nissan Patrol GQ/GU Rear (57mm extended @ 7kN when using the BS002 mounts)
• OE Toyota Landcruiser 80/105 Series Rear (33mm extended @ 7kN)
• Nissan Navara NP300 Rear (46mm extended @ 7kN)
• Universal Applications (113mm compressed height @ 7kN)

Our re-engineered design increases energy absorption while offering less kinetic energy reducing the resultant rebound of the suspension when returning from full compression (full bump) which is a common side effect of other designs. They dont bounce!

Some of the design features include:

• Contact face has been engineered to offer a progressive entry to the damping force for improved ride comfort.
• Premium quality natural rubber construction.
• Side furrows have been remodelled to minimise rebound and increase durability.
• Overall length increased to provide increased final height whilst not limiting progressive nature.
• Supplied with Flange head M12 bolt & M12 Flange nut to complete the mounting solutions in most applications.
• Firm Duro in line with OE designs.

The below graph illustrates the height vs load of the Blackhawk bump stop when compared to OE examples:

*measured with a NATA calibrated load cell.

Nissan Patrol rear applications are designed to be used along with the BS002 Bump Stop plates. Also available as a matched PAIR in a kit which includes both bump stops & mounts.

Sold as a PAIR

The 4WD Shed is an Authorised Blackhawk 4x4 Stockist

Dimensions Approx 17.5cm tall & 10cm across bottom
