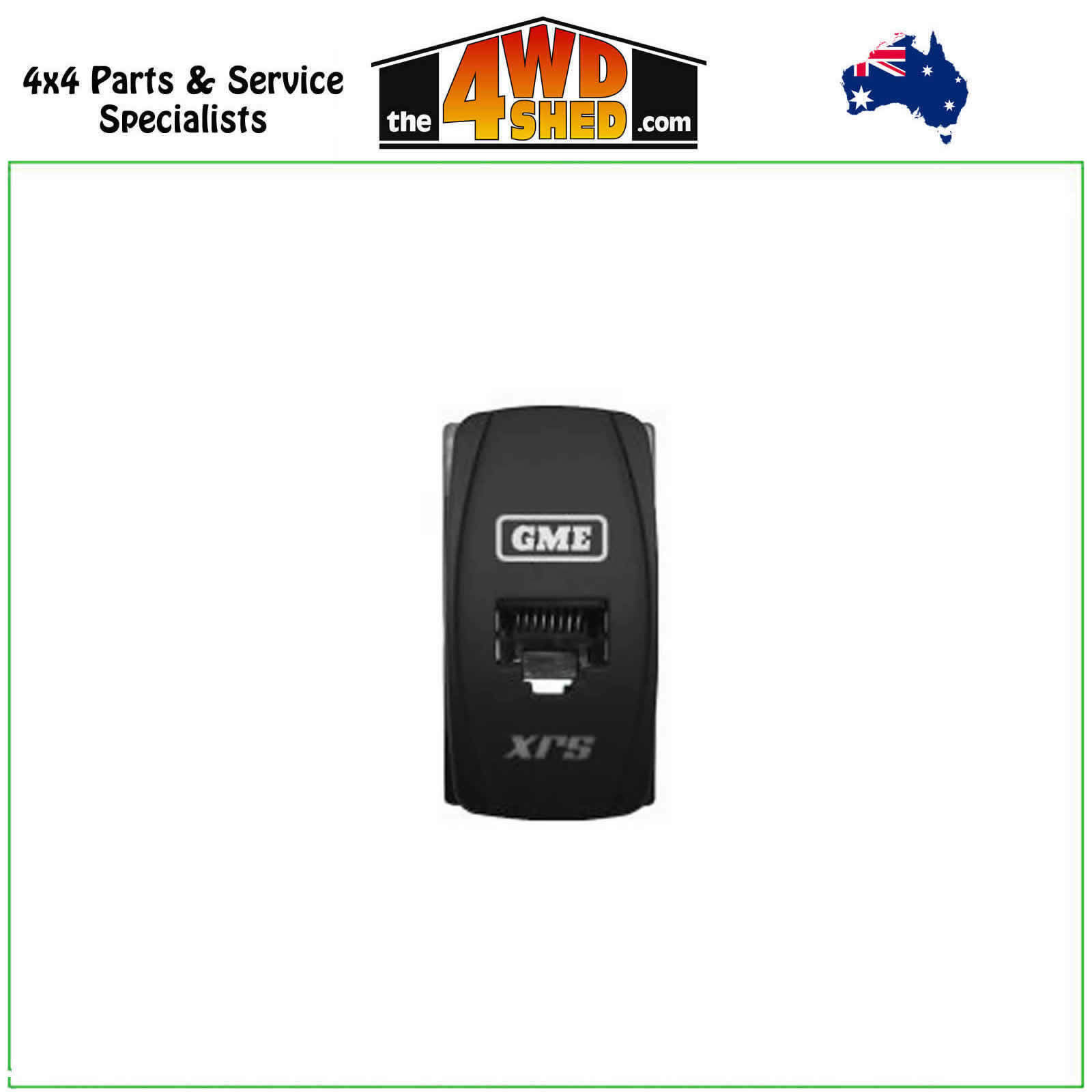

XRS-RJ45 UHF Pass Through Adaptor Switch Universal - 48.37 x 24.2mm
GME XRS-RJ45 UHF Pass Through Adaptor Switch - Universal
Red or White
The XRS-RJ456 universal pass-through adaptors allow for an XRS™ Connect controller microphone to be integrated into a number locations and in a variety of vehicles, providing a neat and professional finish. Ideally suited for applications including agriculture machinery, 4WD vehicles, heavy vehicles or any fitment on a flat surface.
Featuring a CAT.6 compliant, fully shielded housing to minimise RF interference and dual lateral supports front and back for an extremely stable connection ensuring trouble-free communication.
The existing range of XRS-RJ45 pass-through adaptors allows for an XRS™ Connect controller microphone to be integrated directly into a range of blank OEM switch locations, providing a neat and professional finish.
Also compatible with other UHF CB radios using an 8 Pin RJ45 Connection.
Product Details
- Suits XRS™ Connect UHF CB Radios
- CAT.6 Compliant, Fully-Shielded Housing
- Red or White LED Back-light
- Ideally Suited for Universal Applications

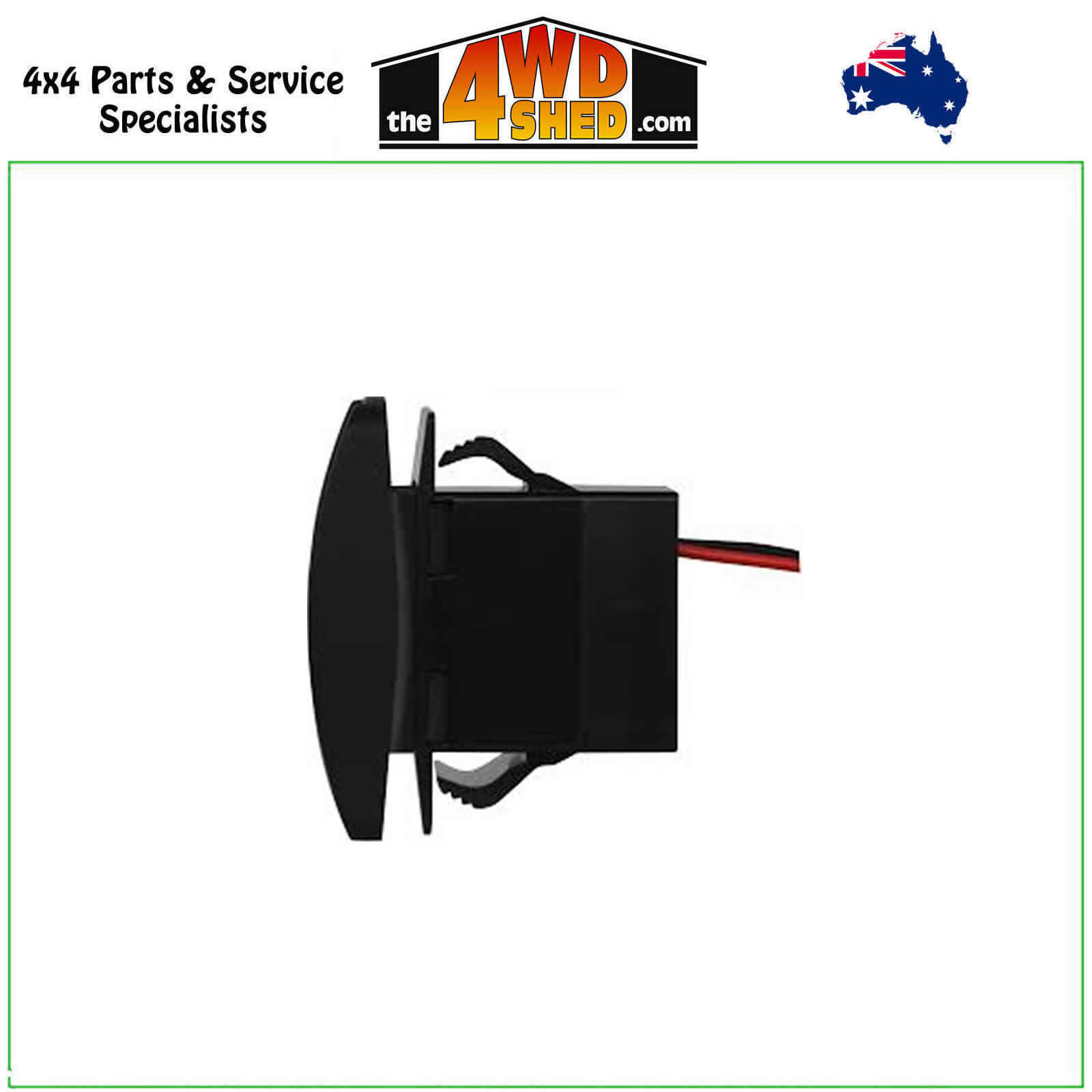

- Two Wire Installation: Connect the red wire to the existing 12V dash light circuit and the black wire to the negative circuit

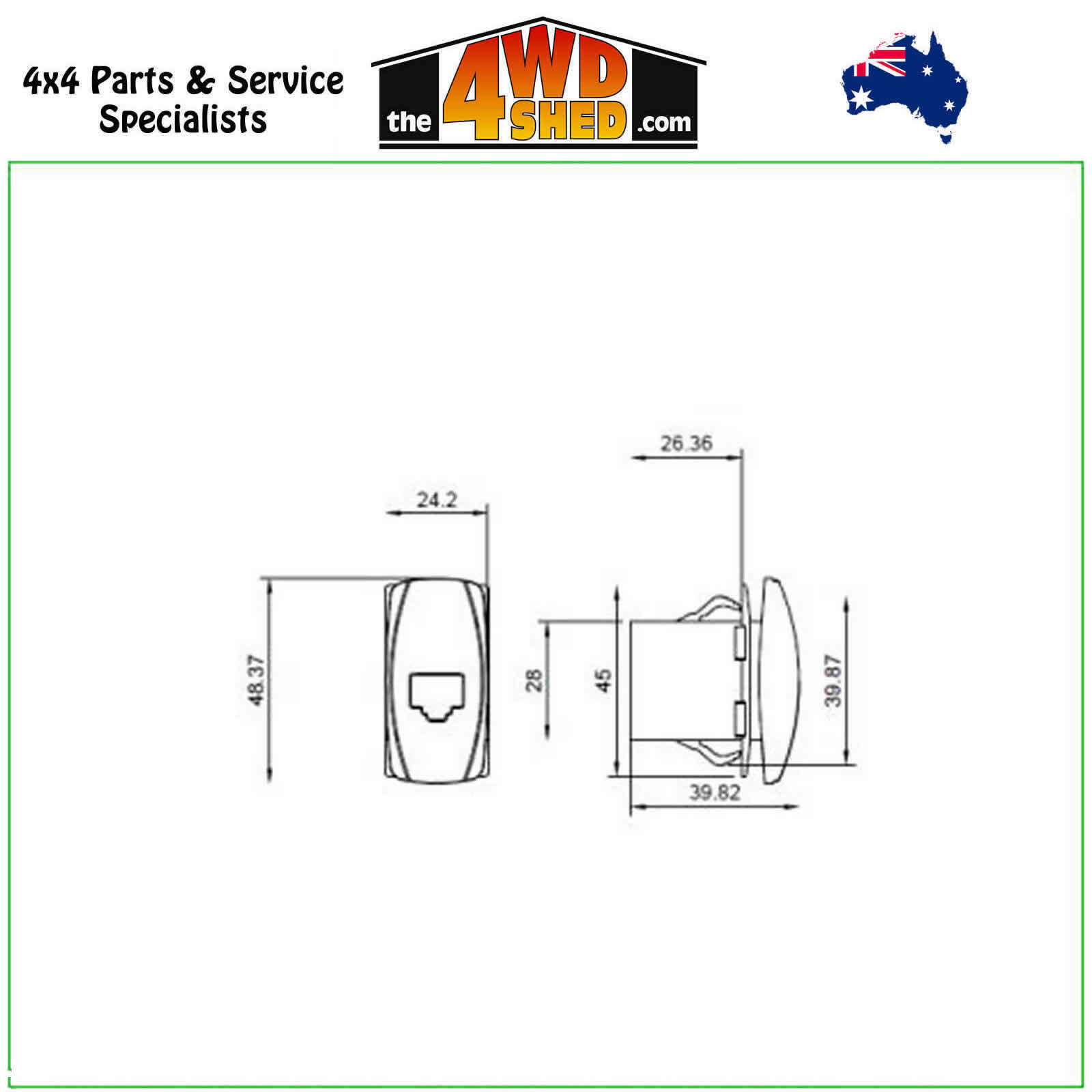

- Total Mounting Depth Excluding Cable Exit: 26mm
- Switch Cut-Out Size Required: 21mm x 37mm (with a panel thickness of 2.0mm)

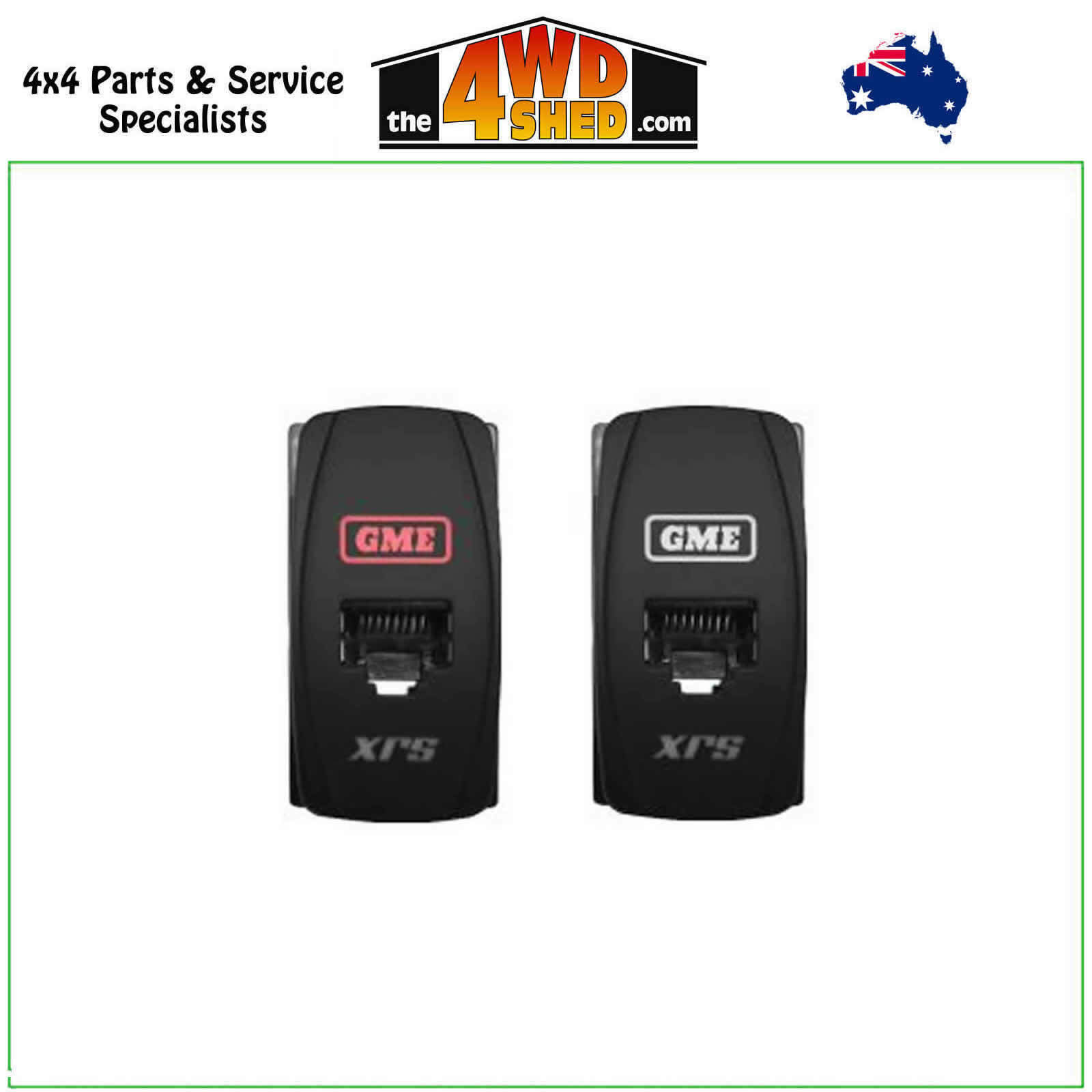

Colour Availability

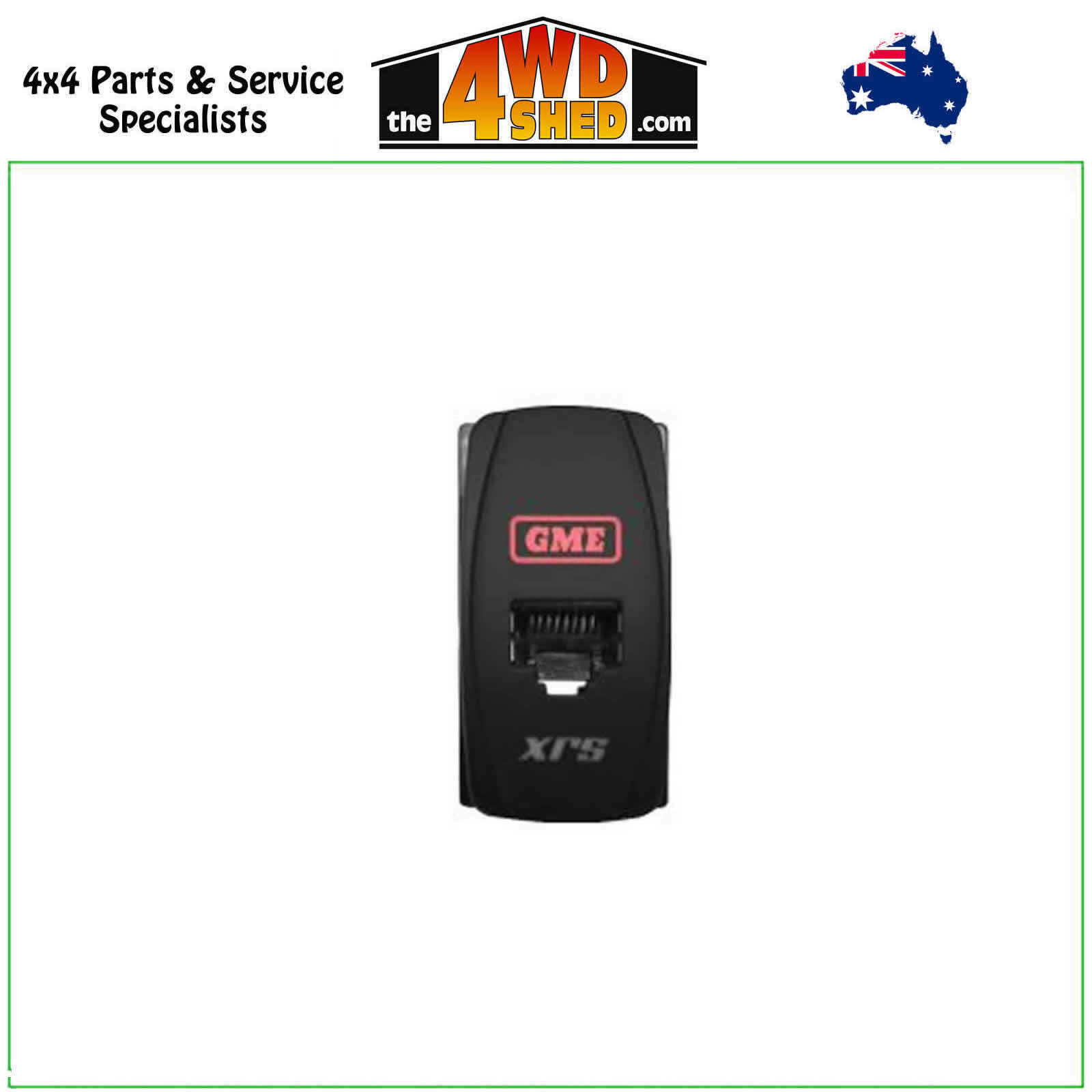

- Red
- White
Vehicle
- UNIVERSAL TYPE
Suits Carling Style Dash Hole Dimensions
*Also compatible with other microphones using an RJ45 8-Pin Connectors
(XRS-RJ45-T6)
| SKU | XRS-RJ45-T6 |
| Brand | GME |
| Shipping Weight | 0.2500kg |
