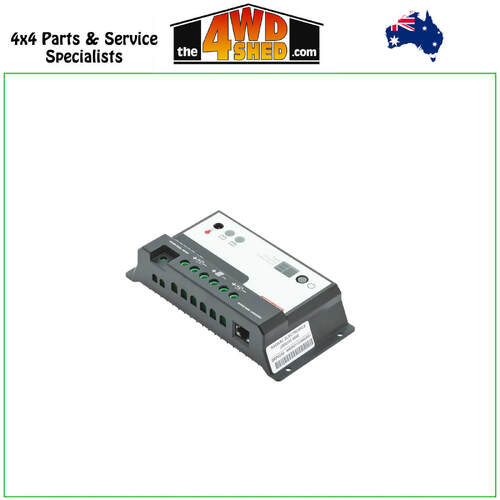

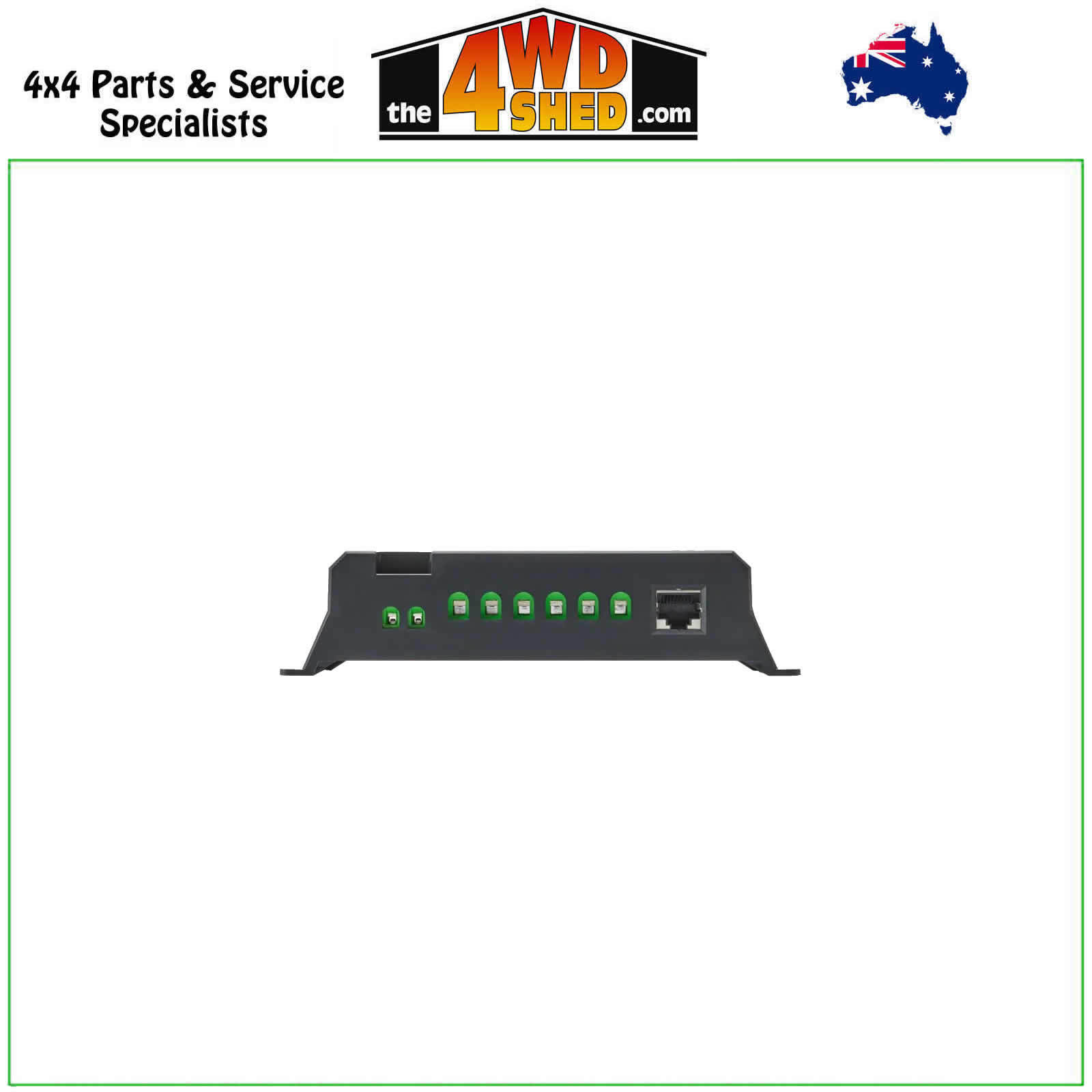

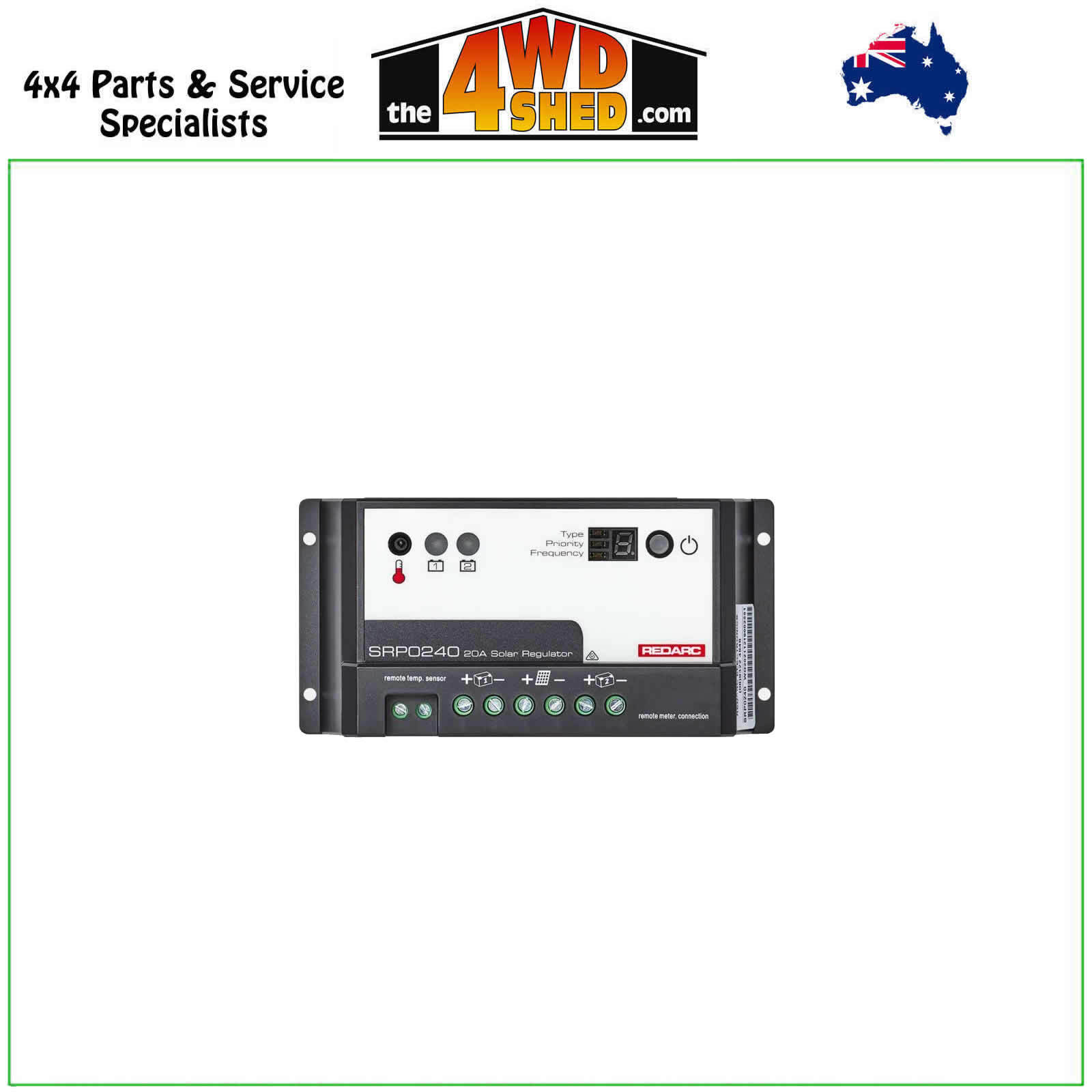

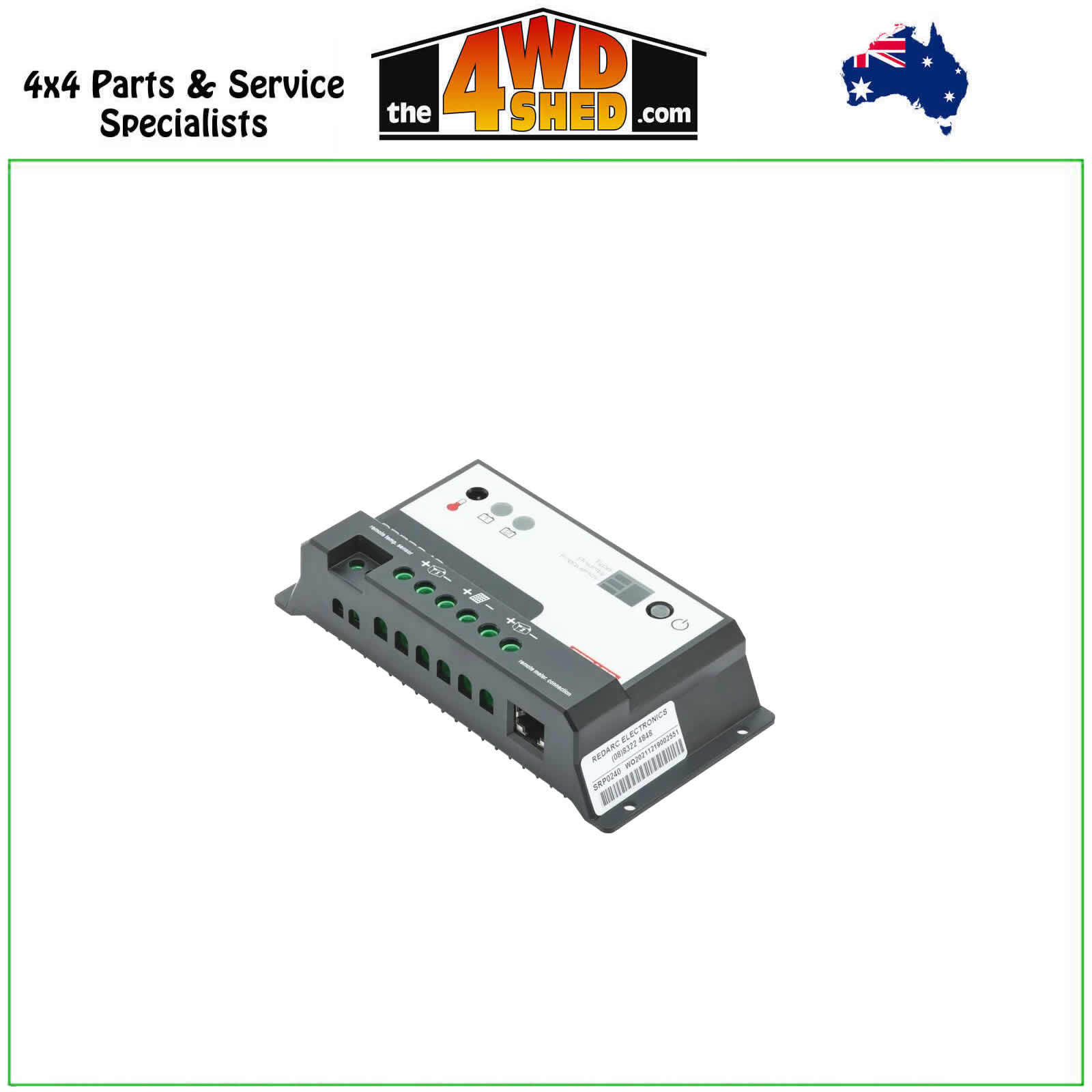

20 Amp Solar Regulator 12/24V
More infoThe REDARC 20A Solar Regulator ensures that the power supplied by 12 volt or 24 volt solar panels is regulated to the right voltage to charge auxiliary batteries.
REDARC solar regulators ensure that the power supplied by your solar panels is at the right voltage to charge your house or auxiliary batteries.
Our regulators are suitable for charging up to two separate battery banks and come in both 10A and 20A models.
Features
- Multi-stage charging
- Dual battery outputs
- LED indication
- Remote monitor (optional)
- Remote temperature sensor (optional)
- 2 year warranty
The SRP regulators are primarily used with the SMR range of solar panels. And when the Anderson to bare wire connector cable (SRC0016) is purchased, the solar blankets and folding solar panels can use the SRP range of solar regulators.
Optional Monitor
REDARC recommends the purchase of the REDARC Solar Remote Monitor (SRP0240-RM) to change battery types and configuration settings.
The 4WD Shed is an Authorised Online Reseller for Redarc.
We also fit Redarc products in our mechanical workshop in Bayswater, Vic. Additional Costs May Apply
| Current Rating | 20A |
|---|---|
| Standby Current | <4mA |
| Weight | 240 g |
| height | 37 mm |
| width | 76 mm |
| depth | length | 153 mm |
| Warranty | 2 Years |
| System Voltage | 12V / 24V DC |
| Input Voltage | 12V / 24V |
| Max. Charging Voltage | 14.8V / 29.6V |
| Max. Rated Output Current | 20A |
(SRP0240)
| SKU | SRP0240 |
| Barcode # | 9338628002702 |
| Brand | Redarc |
| Shipping Weight | 0.5000kg |
